| | 1960 - 1969 |
| 430 Series | | Utility tractor |
|

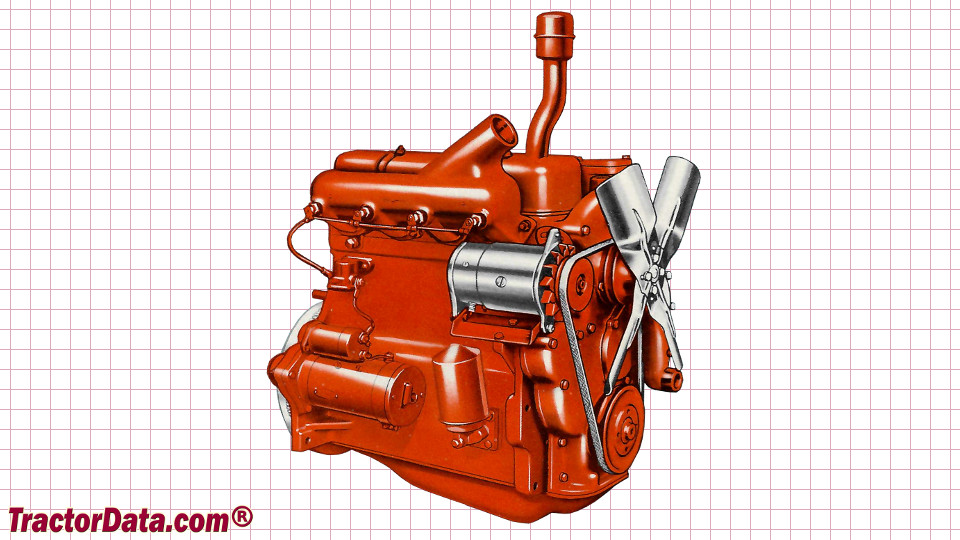

| Engine Detail |
| J.I. Case |
| gasoline |
| 4-cylinder |
| liquid-cooled overhead valve |
| Displacement | 148 ci
2.4 L
|
| Bore/Stroke | 3.375x4.5 inches
86 x 114 mm
|
| Air cleaner | oil bath
|
| Compression | 7.1:1
|
| Rated RPM | 1750
|
| Starter volts | 12
|
| Oil capacity | 5 qts
4.7 L
|
| Coolant capacity | 12 qts
11.4 L
|
| J.I. Case 440 Engine |
 |
