Tractors > J.I. Case > DC

J.I. Case DC Tests



J.I. Case DC tractor photo
1939 - 1953
D Series
Row-Crop tractor
Series map:
DC
41.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 340

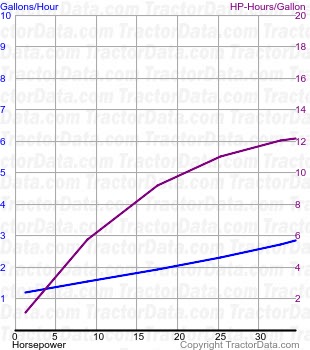

DC fuel use from test 340
Nebraska Tractor Test 340
Gasoline 4-speed 2WD
April 18 - May 4, 1940
Link: Nebraska Tractor Test 340 file
Belt power (max)37.28 hp
27.8 kW
Belt fuel use (max)3.4 gal/hour
12.9 l/hour
Drawbar performance
Max power33.06 hp
24.7 kW
Gear 2 used for power test.
Max pull4,128 lbs
1872 kg
Gear 1 used for pull test.
