International Harvester 6788 Engine


International Harvester 6788 tractor photo
1981 - 1984
60 2+2 Series
Series map:
6588
6788
177.0hp
200.0hp
Engine Detail
International Harvester DT 466B
turbocharged diesel
6-cylinder
liquid-cooled
Displacement466 ci
7.6 L
Bore/Stroke4.30x5.35 inches
109 x 136 mm
Power200 hp
149.1 kW
Rated RPM2500
Oil capacity20 qts
18.9 L
Coolant capacity34 qts
32.2 L

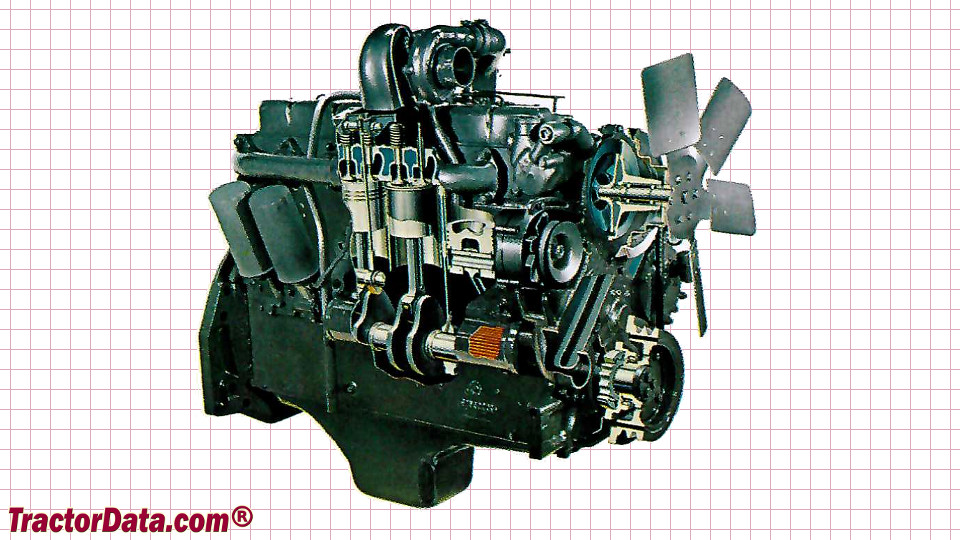

International Harvester 6788 Engine
International Harvester 6788 engine image
