International Harvester 6588 Transmission


International Harvester 6588 tractor photo
1981 - 1984
60 2+2 Series
3588
Series:638865886788
Transmission
Type:two-range power shift
Gears:16 forward and 8 reverse
Oil capacity:94.5 qts
89.4 L
Left lever selects high, low, or reverse range. Right lever selects gear. On-the-move powershift without the clutch between gear pairs 1/2, 3/4, 5/6, and 7/8. Synchronized shift (with the clutch) from 2-to-3, 4-to-5, and 6-to-7.

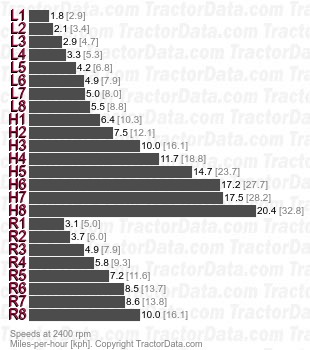

Speeds
With 18.4-34 tires.
6588  two-range power shift speeds
