| | 1981 - 1984 |
| 30 Series | | Row-Crop tractor |
|
Series map:
3288
3488
3688
100.0hp*
124.4hp*
125.6hp*
*Estimated engine power for comparison only.
| Engine Detail |
| International Harvester D466 |
| diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 466 ci
7.6 L
|
| Bore/Stroke | 4.30x5.35 inches
109 x 136 mm
|
| Air cleaner | dual paper elements
|
| Compression | 15.7:1
|
| Rated RPM | 2400
|
| Idle RPM | 900-2400
|
| Starter volts | 12
|
| Coolant capacity | 30 qts
28.4 L
|

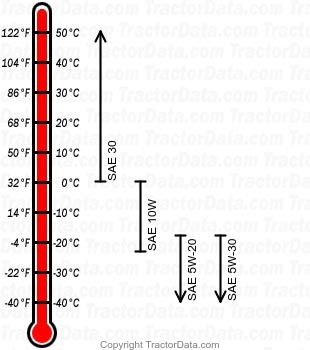

| Engine Oil |
|
| Oil capacity | 14 qts
13.2 L
|
