International Harvester 1566 Tests
|
|
| Nebraska Tractor Test 1174 | |||
| |||
| Nebraska Tractor Test 1174 | |
| Diesel Torque Amplifier 2WD May 3 - 15, 1975 Link: Nebraska Tractor Test 1174 file | |
| PTO performance | |
| Power at rated engine speed | 161.01 hp 120.1 kW |

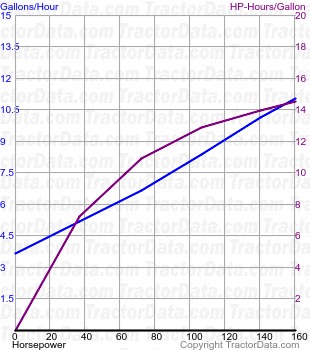

| Fuel use | 11.1 gal/hour 42.0 l/hour |
| Power at rated PTO speed | 162.31 hp 121.0 kW |
| Fuel use | 10.0 gal/hour 37.9 l/hour |
| Drawbar performance | |
| Max power | 137.00 hp 102.2 kW |
| Fuel use | 10.9 gal/hour 41.3 l/hour |
| Max pull | 15774 lbs 7155 kg |
