International Harvester 130 Engine


International Harvester 130 tractor photo
1956 - 1958
Utility tractor
Series map:
130
24.7hp*
*Estimated engine power for comparison only.
Engine Detail
International Harvester C-123
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement122.7 ci
2.0 L
Bore/Stroke3.125x4.00 inches
79 x 102 mm
Air cleaneroil bath
Compression6.8:1
Rated RPM1400
Firing order1-3-4-2
Starter volts6
Oil capacity5 qts
4.7 L
Coolant capacity15 qts
14.2 L
International Harvester 130 Engine

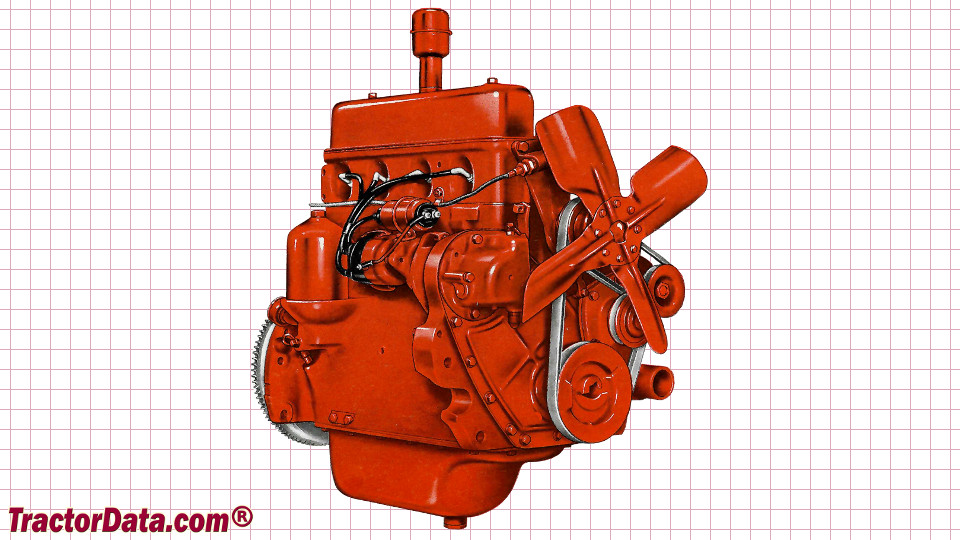

International Harvester 130 engine image
