International Harvester Hydro 70 Tests


International Harvester Hydro 70 tractor photo
1973 - 1976
Row-Crop tractor
Series map:
Hydro 70
90.0hp
Tractor Tests
NTTL 1154: gasoline hydrostatic 2WD
NTTL 1155: diesel hydrostatic 2WD
Nebraska Tractor Test 1154

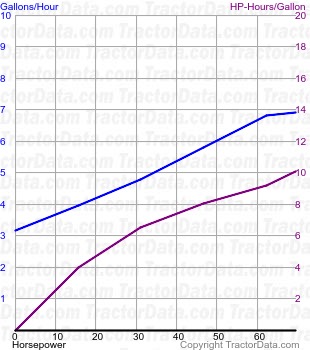

Hydro 70 fuel use from test 1154
Nebraska Tractor Test 1154
Gasoline hydrostatic 2WD
November 14 - December 3, 1973
Link: Nebraska Tractor Test 1154 file
PTO performance
Power at rated engine speed69.61 hp
51.9 kW
Fuel use6.9 gal/hour
26.1 l/hour
Power at rated PTO speed64.10 hp
47.8 kW
Fuel use5.8 gal/hour
22.0 l/hour
Drawbar performance
Max power53.86 hp
40.2 kW
Fuel use7.7 gal/hour
29.1 l/hour
Max pull8,427 lbs
3822 kg
Nebraska Tractor Test 1155

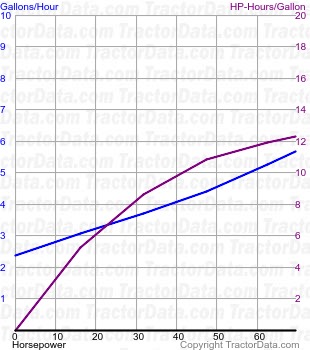

Hydro 70 fuel use from test 1155
Nebraska Tractor Test 1155
Diesel hydrostatic 2WD
November 14 - December 3, 1973
Link: Nebraska Tractor Test 1155 file
PTO performance
Power at rated engine speed69.51 hp
51.8 kW
Fuel use5.6 gal/hour
21.2 l/hour
Power at rated PTO speed65.41 hp
48.8 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power53.10 hp
39.6 kW
Fuel use5.6 gal/hour
21.2 l/hour
Max pull8,310 lbs
3769 kg
