Tractors > McCormick-Deering > W-4

McCormick-Deering W-4 Tests



McCormick-Deering W-4 tractor photo
1939 - 1952
Standard-tread tractor
Series map:
W-4
W-6
27.7hp*
40.8hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 342: distillate 5-speed 2WD
NTTL 353: gasoline 5-speed 2WD
Nebraska Tractor Test 342

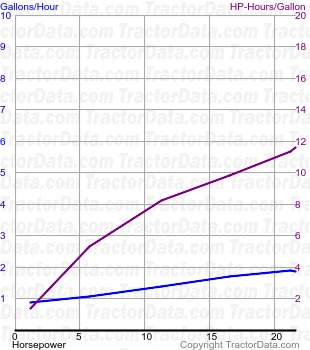

W-4 fuel use from test 342
Nebraska Tractor Test 342
Distillate 5-speed 2WD
May 9 - 25, 1940
Link: Nebraska Tractor Test 342 file
Belt power (max)23.11 hp
17.2 kW
Belt fuel use (max)2.0 gal/hour
7.6 l/hour
Drawbar performance
Max power21.38 hp
15.9 kW
Gear 2 used for power test.
Max pull3,297 lbs
1495 kg
Gear 1 used for pull test.
Nebraska Tractor Test 353

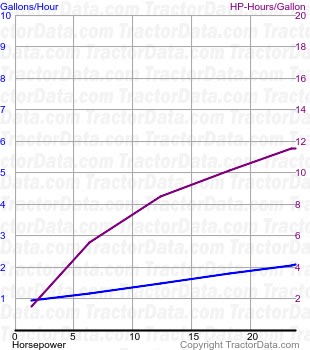

W-4 fuel use from test 353
Nebraska Tractor Test 353
Gasoline 5-speed 2WD
September 16 - 20, 1940
Link: Nebraska Tractor Test 353 file
Belt power (max)26.21 hp
19.5 kW
Belt fuel use (max)2.3 gal/hour
8.7 l/hour
Drawbar performance
Max power23.97 hp
17.9 kW
Gear 2 used for power test.
Max pull3671 lbs
1665 kg
Gear 1 used for pull test.
