Tractors > Farmall > M

Farmall M Tests



Farmall M tractor photo
1939 - 1954
Row-Crop tractor
Series map:
H
M
26.7hp*
38.0hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 327: distillate 5-speed 2WD
NTTL 328: gasoline 5-speed 2WD
Nebraska Tractor Test 327

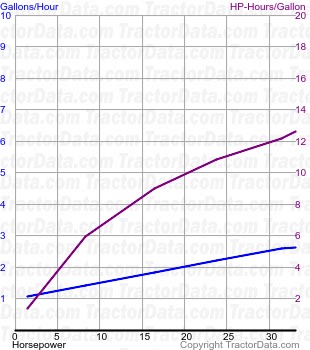

M fuel use from test 327
Nebraska Tractor Test 327
Distillate 5-speed 2WD
September 5 - 16, 1939
Link: Nebraska Tractor Test 327 file
Belt power (max)34.82 hp
26.0 kW
Belt fuel use (max)2.8 gal/hour
10.6 l/hour
PTO performance
Power at rated engine speed34.16 hp
25.5 kW
Fuel use2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power30.62 hp
22.8 kW
Gear 2 used for power test.
Max pull4,365 lbs
1979 kg
Gear 1 used for pull test.
Nebraska Tractor Test 328

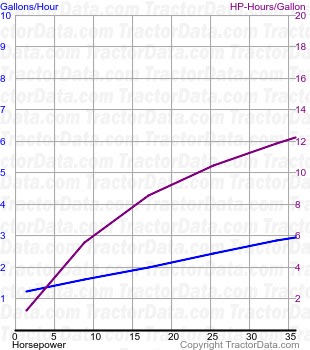

M fuel use from test 328
Nebraska Tractor Test 328
Gasoline 5-speed 2WD
September 11 - 21, 1939
Link: Nebraska Tractor Test 328 file
Belt power (max)36.66 hp
27.3 kW
Belt fuel use (max)3.0 gal/hour
11.4 l/hour
PTO performance
Power at rated engine speed36.07 hp
26.9 kW
Fuel use3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power33.1 hp
24.7 kW
Max pull4,266 lbs
1935 kg
Gear 1 used for pull test.
