Tractors > Ford > 1600

Ford 1600 Engine



Ford 1600 tractor photo
1976 - 1979
Compact Utility tractor
Shibaura built
Series map:
1600
25.6hp*
*Estimated engine power for comparison only.
Engine Detail
Shibaura LE892
diesel
2-cylinder
liquid-cooled
Displacement77.6 ci
1.3 L
Bore/Stroke3.54x3.94 inches
90 x 100 mm
Air cleaneroil bath
Pre-heatingglow plugs
Compression21:1
Rated RPM2500
Idle RPM750-2700
Starter volts12
Coolant capacity5.6 qts
5.3 L
Intake valve clearance0.012 inches (hot)
0.305 mm
Exhaust valve clearance0.012 inches (hot)
0.305 mm
Engine Oil

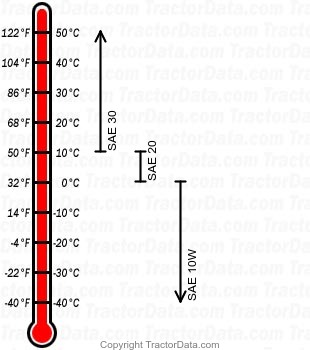

1600 diesel engine oil chart
2WD Oil capacity5.3 qts
5.0 L
4WD Oil capacity4.2 qts
4.0 L
Oil change100 h
