Tractors > Ford > 740

Ford 740 Tests



Ford 740 tractor photo
1954 - 1957
700 Series
Row-Crop tractor
Series map:
740
33.3hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 570

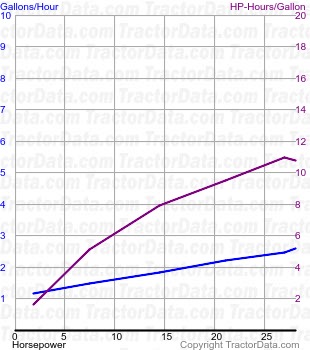

740 fuel use from test 570
Nebraska Tractor Test 570
Gasoline 4-speed 2WD
November 7 - 15, 1955
Link: Nebraska Tractor Test 570 file
Belt power (max)31.62 hp
23.6 kW
Belt fuel use (max)3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power28.32 hp
21.1 kW
Gear 2 used for power test.
Max pull3,117 lbs
1413 kg
Gear 1 used for pull test.
