Tractors > Ford > TW-30

Ford TW-30 Tests



Ford TW-30 tractor photo
1979 - 1983
TW Series
Row-Crop tractor
Series map:
TW-20
TW-30
144.5hp
175.0hp
Nebraska Tractor Test 1299

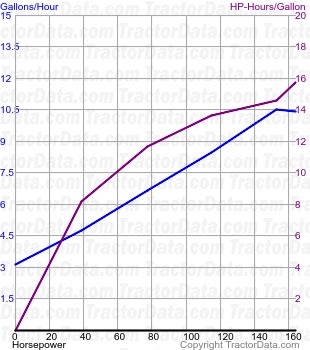

TW-30 fuel use from test 1299
Nebraska Tractor Test 1299
Diesel 16-speed 2WD
March 27 - April 11, 1979
Link: Nebraska Tractor Test 1299 file
PTO performance
Power at rated engine speed163.28 hp
121.8 kW
Fuel use10.4 gal/hour
39.4 l/hour
Power at rated PTO speed157.04 hp
117.1 kW
Fuel use9.4 gal/hour
35.6 l/hour
Drawbar performance
Max power142.21 hp
106.0 kW
Fuel use10.4 gal/hour
39.4 l/hour
Gear 5PD used for power test.
Max pull16,553 lbs
7508 kg
Gear 2PD used for pull test.
