Tractors > Ford > 8N

Ford 8N Tests



Ford 8N tractor photo
1947 - 1952
N Series
Utility tractor
Series map:
8N
30.4hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 385: gasoline 4-speed 2WD
NTTL 393: gasoline 4-speed 2WD
NTTL 443: gasoline 4-speed 2WD
NTTL 444: distillate (8NAN) 4-speed 2WD
Nebraska Tractor Test 385

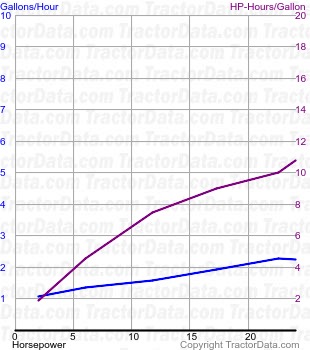

8N fuel use from test 385
Nebraska Tractor Test 385
Gasoline 4-speed 2WD
September 8 - 19, 1947
Link: Nebraska Tractor Test 385 file
Belt power (max)21.06 hp
15.7 kW
Belt fuel use (max)2.7 gal/hour
10.2 l/hour
PTO performance
Power at rated engine speed18.35 hp
13.7 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power20.8 hp
15.5 kW
Max pull2,810 lbs
1274 kg
Nebraska Tractor Test 393

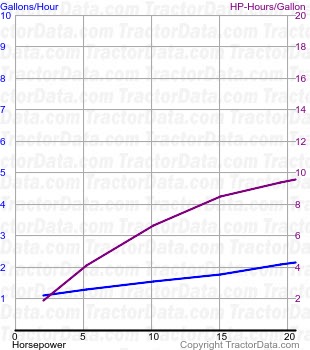

8N fuel use from test 393
Nebraska Tractor Test 393
Gasoline 4-speed 2WD
May 11 - 18, 1948
Link: Nebraska Tractor Test 393 file
Belt power (max)25.77 hp
19.2 kW
Belt fuel use (max)2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power21.72 hp
16.2 kW
Gear 2 used for power test.
Max pull2,751 lbs
1247 kg
Gear 1 used for pull test.
Nebraska Tractor Test 443

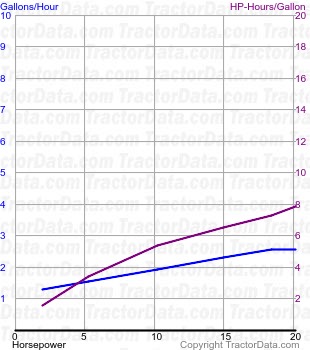

8N fuel use from test 443
Nebraska Tractor Test 443
Gasoline 4-speed 2WD
June 16 - 27, 1950
Link: Nebraska Tractor Test 443 file
Belt power (max)25.49 hp
19.0 kW
Belt fuel use (max)2.3 gal/hour
8.7 l/hour
PTO performance
Power at rated engine speed23.24 hp
17.3 kW
Fuel use2.1 gal/hour
7.9 l/hour
Drawbar performance
Max power21.95 hp
16.4 kW
Gear 2 used for power test.
Max pull2,810 lbs
1274 kg
Gear 1 used for pull test.
Nebraska Tractor Test 444

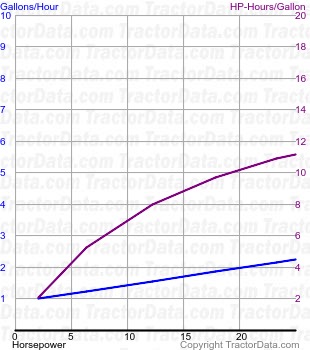

8N fuel use from test 444
Nebraska Tractor Test 444
Distillate (8NAN) 4-speed 2WD
June 22 - 29, 1950
Link: Nebraska Tractor Test 444 file
Belt power (max)21.87 hp
16.3 kW
Belt fuel use (max)2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power18.79 hp
14.0 kW
Gear 2 used for power test.
Max pull2,355 lbs
1068 kg
Gear 1 used for pull test.
