Allis Chalmers 7040 Tests
|
|
| Tractor Tests | |
| NTTL 1166: diesel Power Director 2WD | |
| NTTL 1196: diesel power shift 2WD |
| Nebraska Tractor Test 1166 | |||
| |||
| Nebraska Tractor Test 1166 | |
| Diesel Power Director 2WD October 29 - November 7, 1974 Link: Nebraska Tractor Test 1166 file | |
| PTO performance | |
| Power at rated engine speed | 136.49 hp 101.8 kW |

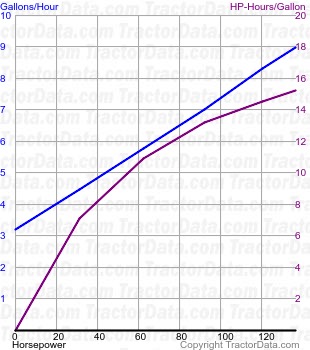

| Fuel use | 9.0 gal/hour 34.1 l/hour |
| Power at rated PTO speed | 136.26 hp 101.6 kW |
| Fuel use | 9.0 gal/hour 34.1 l/hour |
| Drawbar performance | |
| Max power | 114.23 hp 85.2 kW |
| Fuel use | 8.8 gal/hour 33.3 l/hour |
| Gear 4SL used for power test. | |
| Max pull | 13,619 lbs 6177 kg |
| Gear 2SL used for pull test. | |
| Nebraska Tractor Test 1196 | |
| Diesel power shift 2WD November 3 - 20, 1975 Link: Nebraska Tractor Test 1196 file | |
| PTO performance | |
| Power at rated engine speed | 136.30 hp 101.6 kW |
| Fuel use | 8.9 gal/hour 33.7 l/hour |
| Power at rated PTO speed | 136.15 hp 101.5 kW |
| Fuel use | 8.8 gal/hour 33.3 l/hour |
| Drawbar performance | |
| Max power | 114.34 hp 85.3 kW |
| Fuel use | 8.8 gal/hour 33.3 l/hour |
| Gear 1H used for power test. | |
| Max pull | 13,547 lbs 6144 kg |
| Gear 2L used for pull test. | |
