Allis Chalmers 6040 Tests

Allis Chalmers 6040 tractor photo
1974 - 1975
Renault built
Series map:
Nebraska Tractor Test 1028

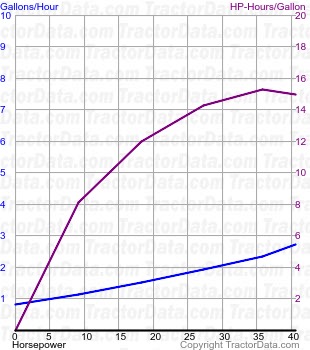

6040 fuel use from test 1028
Nebraska Tractor Test 1028
Diesel 10-speed 2WD
October 27 - November 4, 1969
Link: Nebraska Tractor Test 1028 file
PTO performance
Power at rated engine speed40.36 hp
30.1 kW
Fuel use2.7 gal/hour
10.2 l/hour
Power at rated PTO speed39.77 hp
29.7 kW
Fuel use2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power36.71 hp
27.4 kW
Fuel use2.8 gal/hour
10.6 l/hour
Gear 3-high used for power test.
Max pull4,569 lbs
2072 kg
Gear 1-High used for pull test.
