Allis Chalmers 175 Tests


Allis Chalmers 175 tractor photo
1970 - 1980
Row-Crop tractor
Series map:
175
185
69.4hp*
83.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1043: 236 diesel 8-speed 2WD
NTTL 1156: gasoline 8-speed 2WD
Nebraska Tractor Test 1043

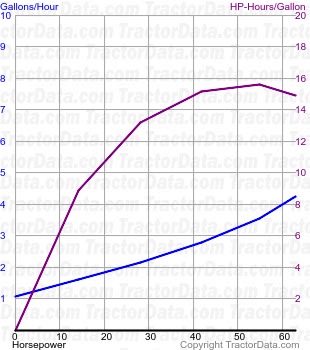

175 fuel use from test 1043
Nebraska Tractor Test 1043
236 diesel 8-speed 2WD
May 26 - June 3, 1970
Link: Nebraska Tractor Test 1043 file
PTO performance
Power at rated engine speed62.47 hp
46.6 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed54.62 hp
40.7 kW
Fuel use3.6 gal/hour
13.6 l/hour
Drawbar performance
Max power54.05 hp
40.3 kW
Fuel use4.2 gal/hour
15.9 l/hour
Gear 2H used for power test.
Max pull6,407 lbs
2906 kg
Gear 1H used for pull test.
Nebraska Tractor Test 1156

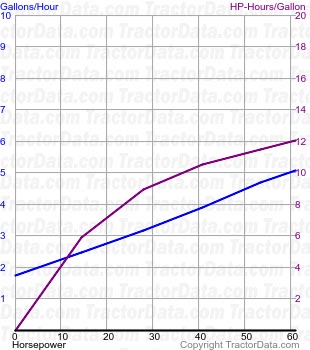

175 fuel use from test 1156
Nebraska Tractor Test 1156
Gasoline 8-speed 2WD
April 1 - 11, 1974
Link: Nebraska Tractor Test 1156 file
PTO performance
Power at rated engine speed60.88 hp
45.4 kW
Fuel use5.1 gal/hour
19.3 l/hour
Power at rated PTO speed56.02 hp
41.8 kW
Fuel use4.8 gal/hour
18.2 l/hour
Drawbar performance
Max power51.80 hp
38.6 kW
Fuel use5.1 gal/hour
19.3 l/hour
Gear 2H used for power test.
Max pull6,875 lbs
3118 kg
Gear 1H used for pull test.
