Tractors > John Deere > 6300

John Deere 6300 Tests



John Deere 6300 tractor photo
1992 - 1997
6000 Series
Utility tractor
Series map:
6200
6300
6400
89.0hp
83.3hp*
94.4hp*
*Estimated engine power for comparison only.
Tractor Tests
OECD 1524: diesel 12-speed 4WD
OECD 1524: diesel 16-speed 4WD
OCED Tractor Test 1524

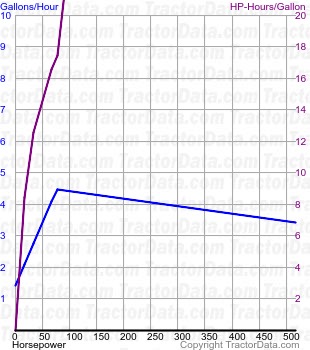

6300 fuel use from test 156
OCED Tractor Test 1524
Diesel 12-speed 4WD
January 1994 - June 1994,
Link: OCED Tractor Test 1524 file
PTO performance
Max power79.8 hp
59.5 kW
Fuel use4.4 gal/hour
16.7 l/hour
Power at rated engine speed77.6 hp
57.9 kW
Fuel use4.5 gal/hour
17.0 l/hour
Power at rated PTO speed79.5 hp
59.3 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power62.5 hp
46.6 kW
Fuel use4.4 gal/hour
16.7 l/hour
Gear 1C used for power test.
Max pull8590 lbs
3896 kg
Gear 1B used for pull test.
OCED Tractor Test 1524

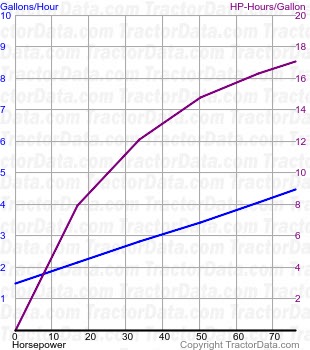

6300 fuel use from test 157
OCED Tractor Test 1524
Diesel 16-speed 4WD
June 1994 - 1994,
Link: OCED Tractor Test 1524 file
PTO performance
Max power77.5 hp
57.8 kW
Fuel use4.5 gal/hour
17.0 l/hour
Power at rated engine speed76.0 hp
56.7 kW
Fuel use4.4 gal/hour
16.7 l/hour
Power at rated PTO speed77.5 hp
57.8 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power61.5 hp
45.9 kW
Fuel use4.4 gal/hour
16.7 l/hour
Gear 1C used for power test.
Max pull8480 lbs
3846 kg
Gear 1B used for pull test.
