John Deere 6200 Engine


John Deere 6200 tractor photo
1993 - 1998
6000 Series
Utility tractor
Series map:
6200
6300
89.0hp
83.3hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere CD4039
turbocharged diesel
4-cylinder
liquid-cooled
Displacement239 ci
3.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Power (gross)89 hp
66.4 kW
Rated RPM2300
Idle RPM1840-2300
Starter volts12
Oil capacity12.8 qts
12.1 L
ROPS Coolant capacity14.5 qts
13.7 L
Cab Coolant capacity18.5 qts
17.5 L

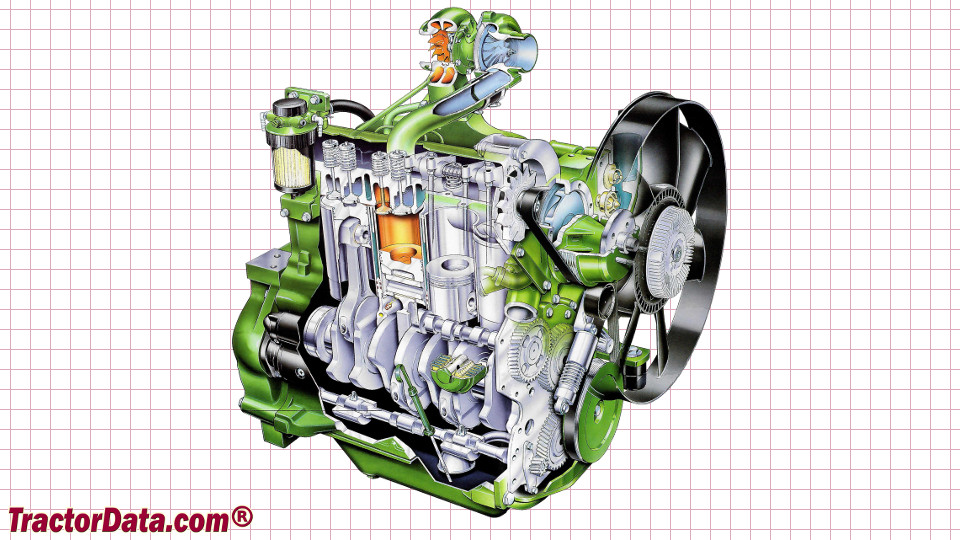

John Deere 6200 Engine
John Deere 6200 engine image
