John Deere 2750 Transmission


John Deere 2750 tractor photo
1983 - 1986
2050 Series
Utility tractor
Series:255027502950
2755
Transmissions overview
8-speed partially synchronized
16-speed partial powershift
12-speed partially synchronized
Transmission
Transmission:John Deere Top-Shaft Synchronized
Type:partially synchronized
Gears:8 forward and 4 reverse
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.
Speeds
With 18.4-30 rear tires.

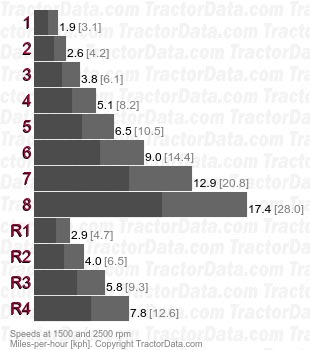

2750 Top-Shaft Synchronized partially synchronized speeds
Transmission
Transmission:John Deere Hi-Lo Top-Shaft Synchronized
Type:partial powershift
Gears:16 forward and 8 reverse
Four gears (1-4) in two ranges (I-II) and reverse (R) with two-speed power shift (rabbit/turtle).
Speeds

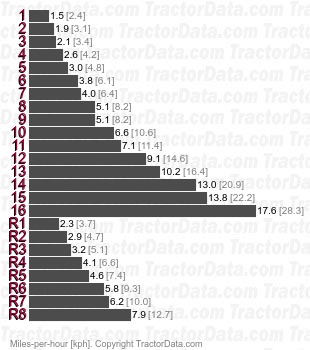

2750 Hi-Lo Top-Shaft Synchronized partial powershift speeds
John Deere 2750 Hi-Lo Top-Shaft Synchronized transmission photo
Transmission
Transmission:John Deere TSS Creeper
Type:partially synchronized
Gears:12 forward and 8 reverse
Adds a creeper to the low and reverse ranges of the Top-Shaft Synchronized transmission.
Speeds
With 18.4-34 rear tires.

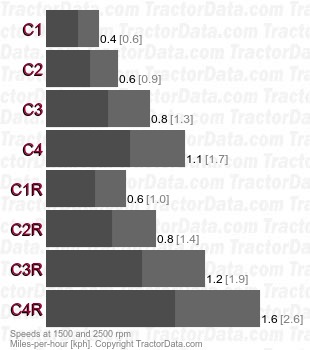

2750 TSS Creeper partially synchronized speeds
