Tractors > John Deere > 1650

John Deere 1650 Engine



John Deere 1650 tractor photo
1984 - 1988
Utility tractor
Yanmar built
Series map:
1450
1650
55.0hp
67.0hp
Engine Detail
Yanmar
turbocharged diesel
4-cylinder
liquid-cooled inline
Displacement190 ci
3.1 L
Bore/Stroke3.74x4.33 inches
95 x 110 mm
Power (gross)67 hp
50.0 kW
Fuel use3.338 gal/hour
12.6 l/hour
Fuel systemdirect injection
Air cleanerdual paper elements
Compression18:1
Rated RPM2300
Idle RPM800-2475
Firing order1-3-4-2
Starter volts12
Coolant capacity11.1 qts
10.5 L
Engine Oil

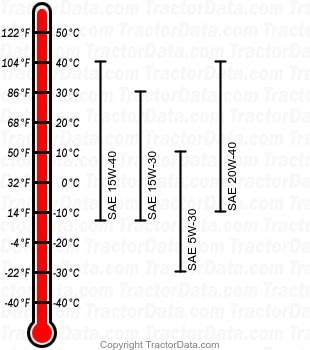

1650 diesel engine oil chart
Oil capacity12.7 qts
12.0 L
Oil change200 h
