John Deere 2240 Tests


John Deere 2240 tractor photo
1976 - 1982
Model year
2040 Series
Utility tractor
1530
Series:204022402440
Nebraska Tractor Test 1192

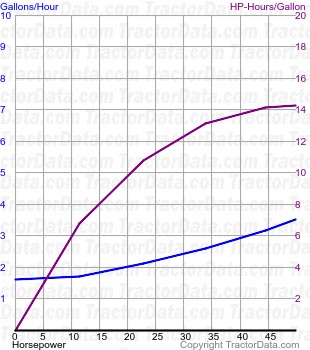

2240 fuel use from test 1192
Nebraska Tractor Test 1192
Diesel 16-speed 2WD
October 9 - 20, 1975
Link: Nebraska Tractor Test 1192 file
PTO performance
Power at rated engine speed:50.37 hp
37.6 kW
Fuel use:3.5 gal/hour
13.2 l/hour
Power at rated PTO speed:46.78 hp
34.9 kW
Fuel use:3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power:39.58 hp
29.5 kW
Fuel use:3.4 gal/hour
12.9 l/hour
Gear 5H used for power test.
Max pull:5,433 lbs
2464 kg
Gear 3L used for pull test.
