| | 1960 - 1965 |
| New Generation Series | | Row-Crop tractor |
|
Series map:
1010
2010
3010
40.1hp*
51.9hp*
66.0hp*
*Estimated engine power for comparison only.
| Engine options |
| John Deere 2.4L 4-cyl gasoline |
| John Deere 2.7L 4-cyl diesel |
| John Deere 2.4L 4-cyl LP gas |
| Engine Detail |
| John Deere |
| gasoline |
| 4-cylinder |
| liquid-cooled |
| Displacement | 144.5 ci
2.4 L
|
| Bore/Stroke | 3.625x3.50 inches
92 x 89 mm
|
| Air cleaner | oil bath
|
| Compression | 8.3:1
|
| Rated RPM | 2500
|
| Starter volts | 12
|
| Engine Detail |
| John Deere |
| diesel |
| 4-cylinder |
| liquid-cooled |
| Displacement | 165.1 ci
2.7 L
|
| Bore/Stroke | 3.875x3.50 inches
98 x 89 mm
|
| Pre-heating | glow plugs
|
| Compression | 19:1
|
| Rated RPM | 2500
|
| Starter volts | 12
|

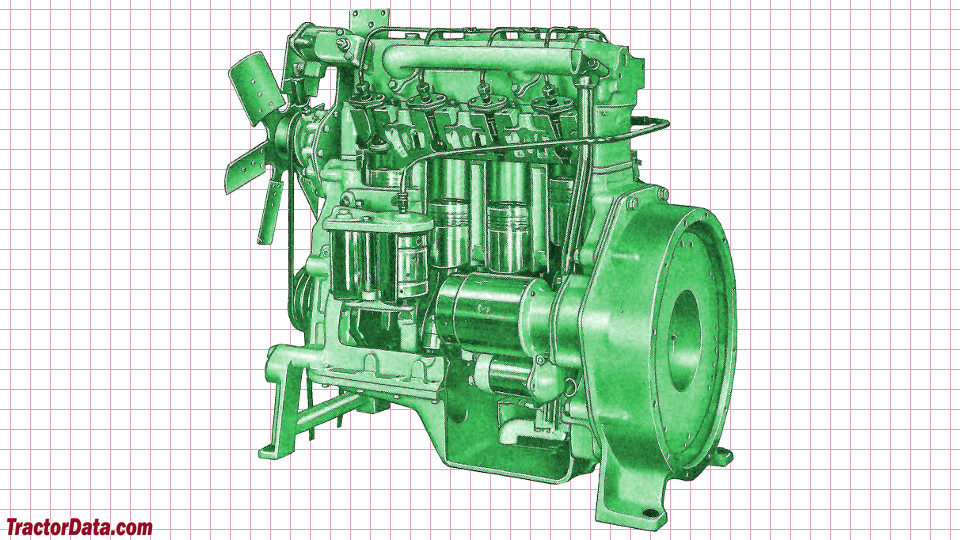

| John Deere 2010 Engine |
 |
| Engine Detail |
| John Deere |
| LP gas |
| 4-cylinder |
| liquid-cooled |
| Displacement | 144.5 ci
2.4 L
|
| Bore/Stroke | 3.625x3.50 inches
92 x 89 mm
|
| Air cleaner | oil bath
|
| Compression | 8.9:1
|
| Rated RPM | 2500
|
| Starter volts | 12
|
