| | 1958 - 1961 |
| Two-Cylinder 30 Series | | Standard-tread tractor |
|
Series map:
730
830
65.6hp*
75.6hp*
*Estimated engine power for comparison only.
| Engine Detail |
| John Deere |
| diesel |
| 2-cylinder |
| liquid-cooled |
| Displacement | 470.7 ci
7.7 L
|
| Bore/Stroke | 6.125x8.00 inches
156 x 203 mm
|
| Air cleaner | oil bath
|
| Compression | 16:1
|
| Rated RPM | 1125
|
| Firing order | 1-2
|
| Starter | Gasoline pony engine
|
| | electric optional
|
| Starter volts | 24
|
| Coolant capacity | 24 qts
22.7 L
|

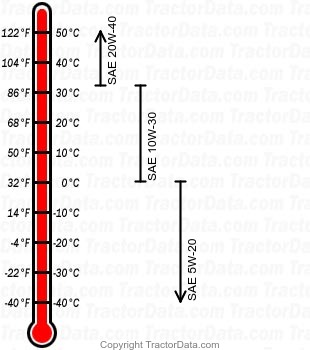

| Engine Oil |
|
| Oil capacity | 14 qts
13.2 L
|
