| | 1956 - 1958 |
| Utility tractor |
|
Series map:
320
420
520
23.9hp*
31.5hp*
41.4hp*
*Estimated engine power for comparison only.
| Engine options |
| John Deere 1.9L 2-cyl gasoline |
| John Deere 1.9L 2-cyl all-fuel |
| John Deere 1.9L 2-cyl LP gas |
| Engine Detail |
| John Deere |
| gasoline |
| 2-cylinder 4-valve |
| liquid-cooled |
| Displacement | 113 ci
1.9 L
|
| Bore/Stroke | 4.25x4.00 inches
108 x 102 mm
|
| Air cleaner | oil bath
|
| Compression | 7:1
|
| Rated RPM | 1850
|
| Firing order | 1-2
|
| Starter volts | 6
|
| Coolant capacity | 11 qts
10.4 L
|

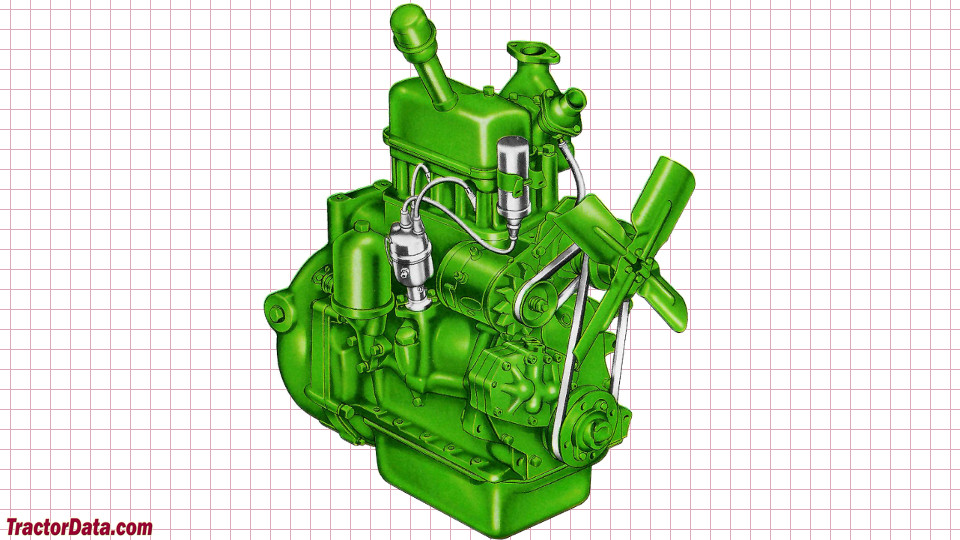

| John Deere 420 Engine |
 |
| Engine Detail |
| John Deere |
| all-fuel |
| 2-cylinder 4-valve |
| liquid-cooled |
| Displacement | 113 ci
1.9 L
|
| Bore/Stroke | 4.25x4.00 inches
108 x 102 mm
|
| Air cleaner | oil bath
|
| Compression | 5.15:1
|
| Rated RPM | 1850
|
| Firing order | 1-2
|
| Starter volts | 6
|
| Engine Detail |
| John Deere |
| LP gas |
| 2-cylinder 4-valve |
| liquid-cooled |
| Displacement | 113 ci
1.9 L
|
| Bore/Stroke | 4.25x4.00 inches
108 x 102 mm
|
| Air cleaner | oil bath
|
| Rated RPM | 1850
|
| Firing order | 1-2
|
| Starter volts | 6
|
