Tractors > John Deere > 40C

John Deere 40C Tests



John Deere 40C tractor photo
1953 - 1955
Agricultural Crawler tractor
Series map:
40C
23.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 505

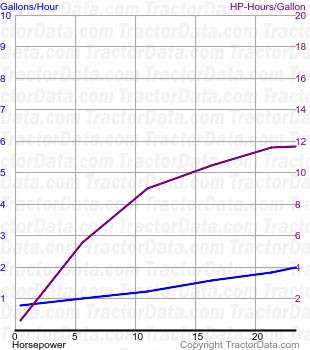

40C fuel use from test 505
Nebraska Tractor Test 505
Gasoline 4-speed crawler
September 9 - 23, 1953
Link: Nebraska Tractor Test 505 file
Belt power (max)25.0 hp
18.6 kW
Belt fuel use (max)2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power19.63 hp
14.6 kW
Gear 3 used for power test.
Max pull4,515 lbs
2048 kg
Gear 1 used for pull test.
