Tractors > John Deere > 50

John Deere 50 Tests



John Deere 50 tractor photo
1952 - 1956
Row-Crop tractor
Series map:
40
50
60
23.5hp*
31.0hp*
41.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 486: gasoline 6-speed 2WD
NTTL 507: tractor fuel 6-speed 2WD
NTTL 540: LP gas 6-speed 2WD
Nebraska Tractor Test 486

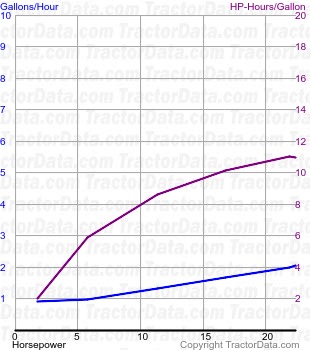

50 fuel use from test 486
Nebraska Tractor Test 486
Gasoline 6-speed 2WD
October 15 - 22, 1952
Link: Nebraska Tractor Test 486 file
Belt power (max)30.35 hp
22.6 kW
Belt fuel use (max)2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power27.07 hp
20.2 kW
Gear 4 used for power test.
Max pull3,504 lbs
1589 kg
Gear 1 used for pull test.
Nebraska Tractor Test 507

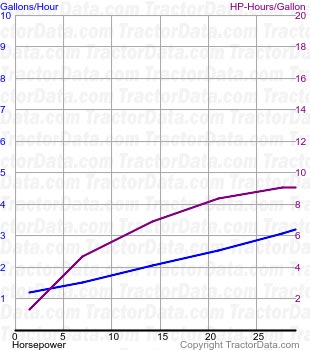

50 fuel use from test 507
Nebraska Tractor Test 507
Tractor fuel 6-speed 2WD
September 25 - October 2, 1953
Link: Nebraska Tractor Test 507 file
Belt power (max)24.83 hp
18.5 kW
Belt fuel use (max)2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power22.45 hp
16.7 kW
Gear 3 used for power test.
Max pull3,583 lbs
1625 kg
Gear 1 used for pull test.
Nebraska Tractor Test 540

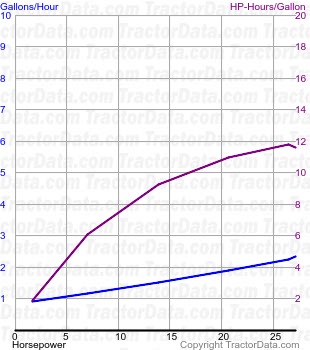

50 fuel use from test 540
Nebraska Tractor Test 540
LP gas 6-speed 2WD
May 9 - 13, 1955
Link: Nebraska Tractor Test 540 file
Belt power (max)31.20 hp
23.3 kW
Belt fuel use (max)3.6 gal/hour
13.6 l/hour
Drawbar performance
Max power28.11 hp
21.0 kW
Gear 4 used for power test.
Max pull3,466 lbs
1572 kg
Gear 1 used for pull test.
