Tractors > Allis Chalmers > D14

Allis Chalmers D14 Transmission



Allis Chalmers D14 tractor photo
1957 - 1960
D Series
Row-Crop tractor
Series map:
D14
37.8hp
Transmissions overview
4-speed sliding gear
8-speed
Transmission
Typesliding gear
Gears4 forward and 1 reverse
Speeds

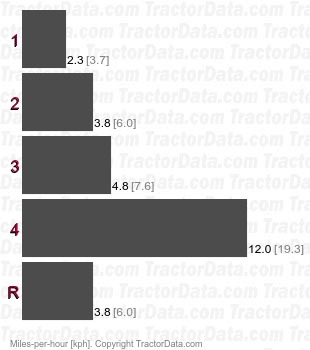

D14 sliding gear speeds
Shift Pattern

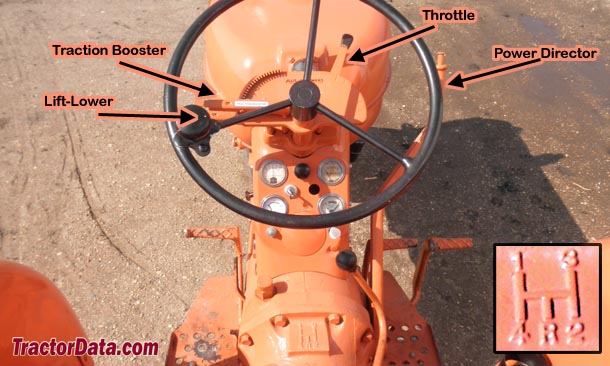

Allis Chalmers D14 transmission controls
Transmission
TransmissionPower-Director
Gears8 forward and 2 reverse
The Power-Director hand clutch allows a shift on the move between high and low ranges for each gear.
Speeds

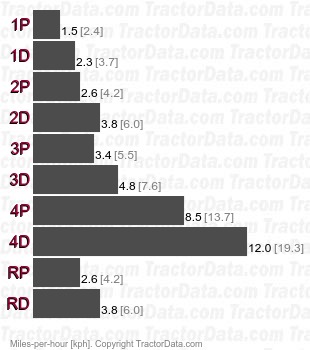

D14 Power-Director speeds
