Tractors > Allis Chalmers > 918 backhoe-loader

Allis Chalmers 918 Engine



Allis Chalmers 918 tractor photo
1968 - 1974
Backhoe loader tractor
Engine Detail
Allis-Chalmers 2800
diesel
6-cylinder
liquid-cooled
Displacement301 ci
4.9 L
Bore/Stroke3.875x4.25 inches
98 x 108 mm
Power84 hp
62.6 kW
Air cleanerdry
Compression16.25:1
Rated RPM2200
Idle RPM650-2425
Firing order1-5-3-6-2-4
Starter volts12
Oil capacity9 qts
8.5 L
Coolant capacity18 qts
17.0 L
Intake valve clearance0.015 inches (hot)
0.381 mm
Exhaust valve clearance0.015 inches (hot)
0.381 mm
Allis Chalmers 918 Engine

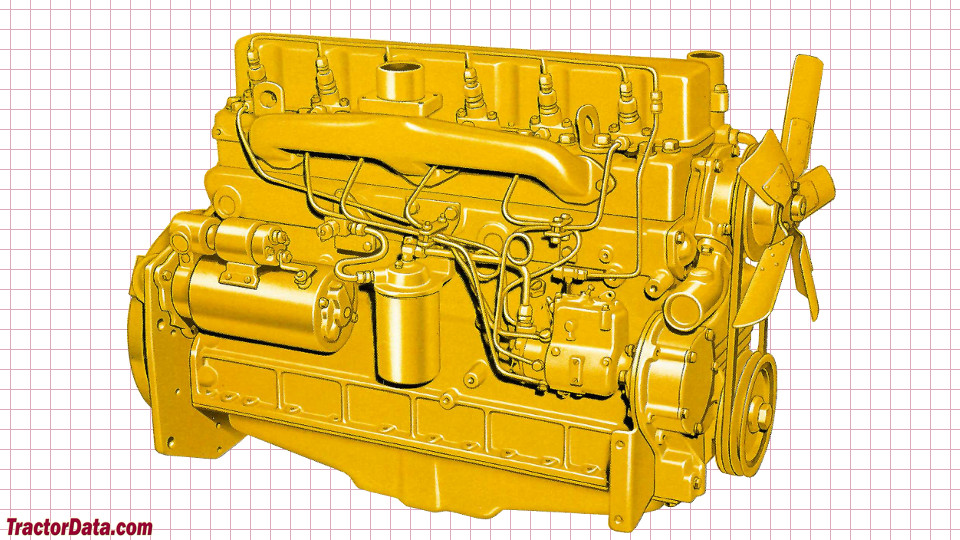

Allis Chalmers 918 engine image
