Tractors > John Deere > 510 backhoe-loader

John Deere 510 Engine



John Deere 510 tractor photo
1971 - 1983
Backhoe loader tractor
Series map:
510
83.0hp
Engine Detail
John Deere
diesel
4-cylinder
liquid-cooled
Displacement270 ci
4.4 L
Bore/Stroke4.25x4.75 inches
108 x 121 mm
Power (net)80 hp
59.7 kW
Power (gross)83 hp
61.9 kW
Air cleanerdry
Compression17.3:1
Rated RPM2500
Torque202 lb-ft
273.9 Nm
Torque RPM1300
Starterelectric
Starter volts12
Oil capacity8 qts
7.6 L
Coolant capacity19 qts
18.0 L
John Deere 510 Engine

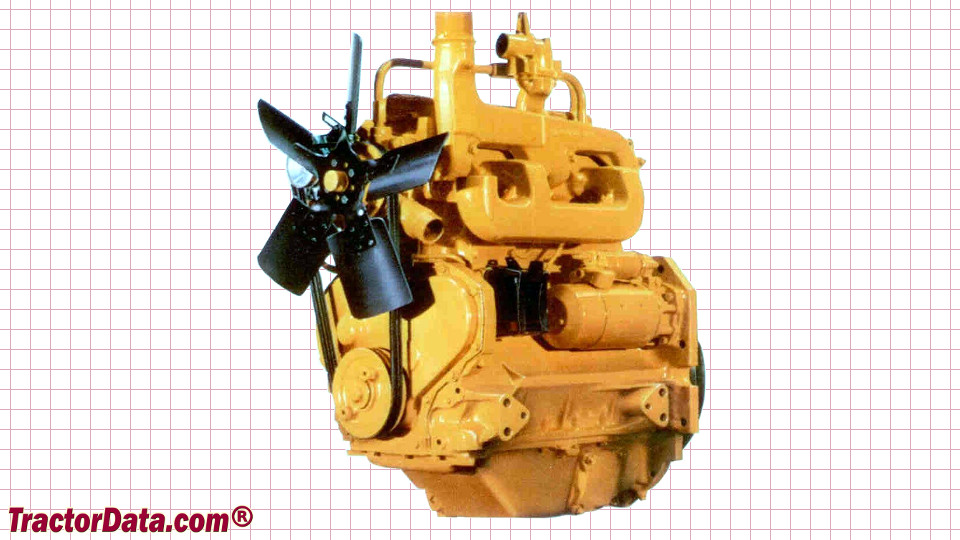

John Deere 510 engine image
