Craftsman 917.27305

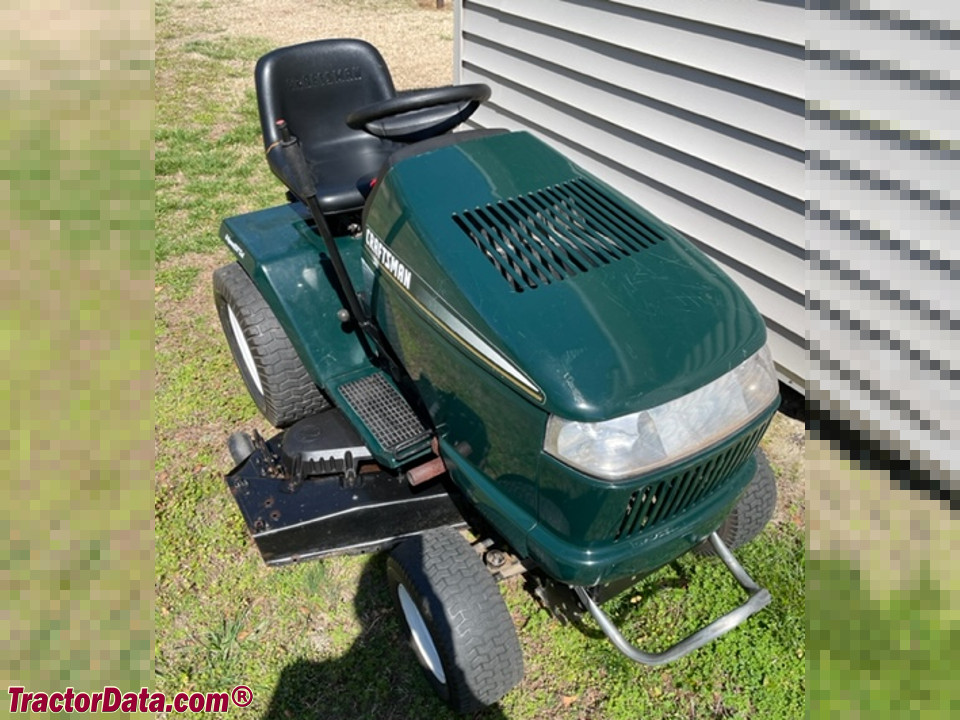

Craftsman 917.27305 lawn tractor photo
1999 - 2000
Garden tractor
AYP built
Production
DistributorCraftsman (a part of Sears)
ManufacturerAYP
Garden tractor
Original price was $2,500 in 2000
Craftsman 917.27305 Engine
20HP Kohler 624cc 2-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Front tire16x6.5-8
Rear tire23x10.5-12
Full dimensions and tires ...
Electrical
Groundnegative
Charging amps15
Battery CCA280
Battery volts12
Battery AH35
Battery GroupU1R
References
917.27305 references literature
Owner's Manual 917.273051 (173952) published in 2000
