MTD 430


MTD 430 lawn tractor photo
1973 - 1977
Riding lawn mower
Production
ManufacturerMTD
Riding lawn mower
Variants
430recoil start
434electric start, no fenders
435electric start
MTD 430 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Photos
No photos of the MTD 430 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Weight348 lbs
157 kg
Front tire10.50x3.50
Rear tire13.00x5.00
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References

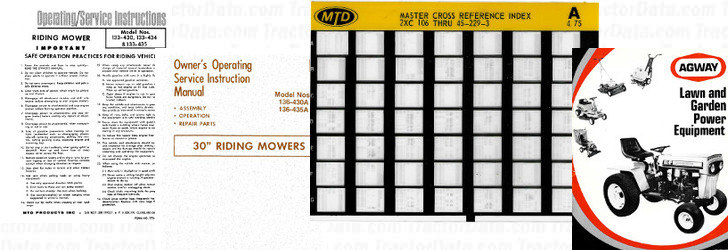

430 references literature
Owner's Manual 133-430, 133-434 and 133-435 (770-64149) published in 1973
Owner's Manual 136-430A and 136-435A (770-6036) published in 1976
MTD Parts Microfiche (770-9101) published in 1974
Lawn and Garden Power Equipment published in 1977, by Agway
