Snapper 331414
|
|
| Production | |
| Manufacturer | Snapper |
| Riding lawn mower | |
| Snapper 331414 Engine | |
| 14HP Kohler 398cc 1-cyl gasoline | |
| Fuel tank | 1.75 gal 6.6 L |
 Engine details ... | |
| Snapper 331414 Transmission | |
| 5-speed fiction disc | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Drum brakes | |
| Open operator station. |
| Photos | |
| No photos of the Snapper 331414 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Dimensions & Tires | |
| Wheelbase | 46 inches 116 cm |
| Weight | 379 lbs 171 kg |
| Front tire | 4.10x3.50-4 |
| Rear tire | 16x7.50-8 |
 Full dimensions and tires ... | |
| Snapper 331414 attachments | |
| 33" mid-mount mower deck | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

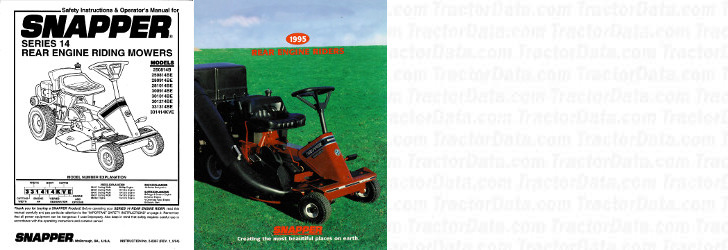

| Operator's Manual Series 14 Rear Engine Riders (2-8387) published in 1994 | |
| Rear Engine Riders published in 1995, by Snapper |
