MTD 836


MTD 836 lawn tractor photo
1981 - 1986
Garden tractor
Production
ManufacturerMTD
Garden tractor
MTD 836 Engine
18HP Briggs & Stratton 693cc 2-cyl gasoline
Fuel tank2.5 gal
9.5 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
No photos of the MTD 836 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual idler pulley
Dimensions & Tires
Front tire16.00x6.50
Rear tire23.00x9.50
Full dimensions and tires ...
MTD 836 attachments
44" mid-mount mower deck
snowblower
blade
Attachment details ...
836 Serial Numbers
1981141-836A (model code)
1982142-836A (model code)
1983143-836A (model code)
1984144-836-000 (model code)
1985145-836-000 (model code)

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References

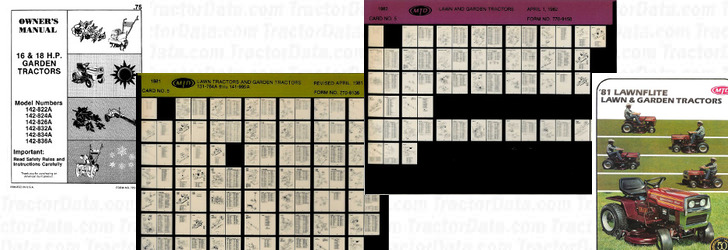

836 references literature
Owner's Manual 142-822A, 142-824A, 142-826A, 142-832A, 142-834A, and 142-836A (770-1773) published in 1982
MTD Parts Microfiche (770-1155) published in 1981
MTD Parts Microfiche (770-2200) published in 1982
Lawn & Garden Tractors published in 1981, by MTD
