MTD 360
|
|
| Production | |
| Manufacturer | MTD |
| Lawn tractor | |
| Variants | |
| 365 | rear differential |
| MTD 360 Engine | |
| 5HP Briggs & Stratton 206cc 1-cyl gasoline | |
 Engine details ... |
| MTD 360 Transmission | |
| 1-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
| No photos of the MTD 360 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Dimensions & Tires | |
| Weight | 198 lbs 89 kg |
| Front tire | 10.25x3.25 |
| Rear tire | 12.50x4.00 |
 Full dimensions and tires ... | |
| MTD 360 attachments | |
| 25" mid-mount mower deck | |
 Attachment details ... |
| 360 Serial Numbers | |
| 1972 | 132-360 (model code) |
| 1973 | 133-360 (model code) |
| 1974 | 134-360A (model code) |
| 1975 | 135-360A (model code) |
| 1976 | 136-360A (model code) |
| 1977 | 137-360A (model code) |
| 1978 | 138-360A (model code) |
| 1979 | 139-360A (model code) |
| 1980 | 130-360A (model code) |
| 1981 | 131-360A (model code) |
| 1982 | 132-360A (model code) |
FAQ: How to read a serial number table. | |
| References | |
 | |

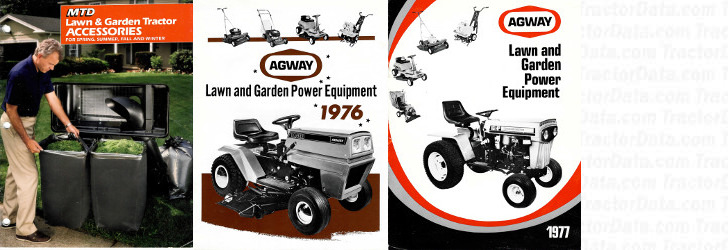

| Lawn & Garden Tractor Accessories published in 1980, by MTD | |
| Lawn and Garden Power Equipment published in 1976, by Agway | |
| Lawn and Garden Power Equipment published in 1977, by Agway | |
 | |

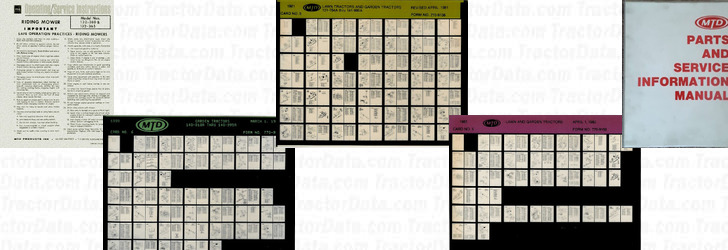

| Operating/Service Instructions 132-360 & 132-365 (770-3539) published in 1972 | |
| MTD Parts Microfiche (770-0273) published in 1980 | |
| MTD Parts Microfiche (770-1155) published in 1981 | |
| MTD Parts Microfiche (770-2200) published in 1982 | |
| Parts and Service Information Manual (770-1737) published in 1982 |
