John Deere M653


John Deere M653 lawn tractor photo
2000 - 2001
M500 Series
Zero-turn mower
Series:M653M655
Production
ManufacturerJohn Deere
TypeZero-turn mower
John Deere M653 Engine
22HP Kohler 673cc 2-cyl gasoline
Fuel tank10 gal
37.9 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringpower
Brakesmechanical band
CabOpen operator station.
Photos
No photos of the John Deere M653 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase52 inches
132 cm
Front tire13x5.00-6
Rear tire23x10.5-12
Full dimensions and tires ...
Electrical
Groundnegative
Charging amps15
Battery CCA470
Battery volts12
References

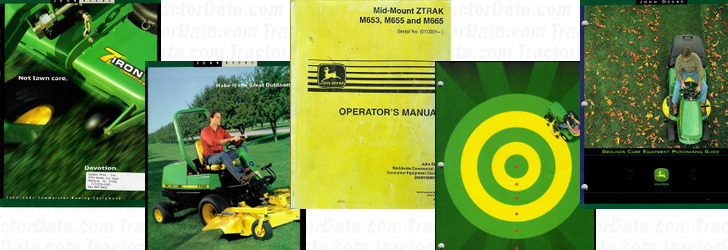

M653 reference literature
Commercial Mowing Equipment published in 2000, by John Deere
Full-Line Commercial Mowing Equipment published in 2000, by John Deere
Operator's Manual M653, M655 and M665 (OMM138801) published in 1999, by John Deere
