Craftsman 131.9636


Craftsman 131.9636 lawn tractor photo
1975 - 1976
Lawn tractor
Roper built
Production
DistributorCraftsman (a part of Sears)
ManufacturerRoper
TypeLawn tractor
Original price$689 (1976 )
Variants
131.9633recoil-start
131.9636electric start
Craftsman 131.9636 Engine
8HP Tecumseh 305cc 1-cyl gasoline
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Photos
No photos of the Craftsman 131.9636 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Weight404 lbs
183 kg
Front tire15x6.00
Rear tire18x9.50
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References

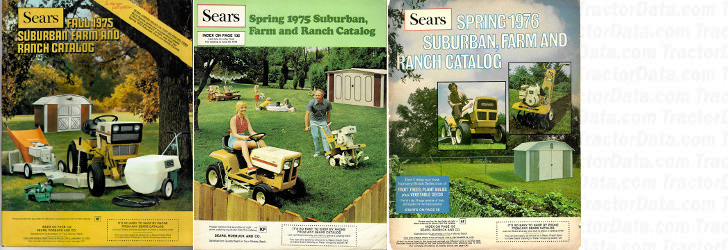

131.9636 reference literature
Suburban, Farm and Ranch Catalog published in 1975, by Sears
Suburban, Farm and Ranch Catalog published in 1976, by Sears
