MTD 650

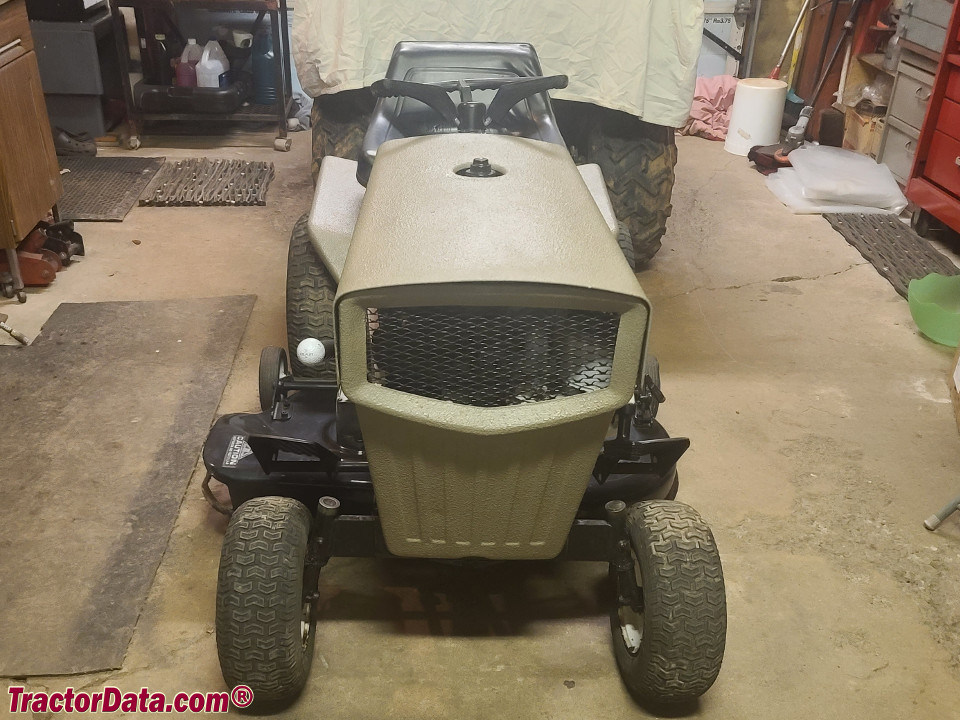

MTD 650 lawn tractor photo
1967 - 1968
Garden tractor
Series:650
669
Production
ManufacturerMTD
TypeGarden tractor
Variants
650recoil start
652110V electric start
65518" tires
66012V electric start
66512V 18" tires
MTD 650 Engine
7HP Briggs & Stratton 1-cyl gasoline
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Photos
No photos of the MTD 650 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Weight320 lbs
145 kg
Front tire12.50x4.50
Rear tire16.00x6.50
Full dimensions and tires ...
MTD 650 attachments
32" mid-mount mower deck
blade
Attachment details ...
References
650 reference literature
Garden Tractor Models 148-650, 148-655, 148-660 and 148-665 (770-904A) published in 1967, by MTD
Garden Tractor Models 148-650, 148-655, 148-660 and 148-665 (770-1331) published in 1968, by MTD
