John Deere 1600 Turbo Series III


John Deere 1600 Turbo Series III lawn tractor photo
2018 -
Front-mount mower
1600 Turbo Series II
Series:1600 Turbo Series III
Production
ManufacturerJohn Deere
TypeFront-mount mower
FactoryFuquay-Varina, North Carolina, USA
Original price$75,429 (2021 )
John Deere 1600 Turbo Series III Engine
60HP Yanmar 2091cc 4-cyl diesel
Fuel tank22 gal
83.3 L
Engine details ...
Mechanical
Chassis4x4 MRWD 4WD
Final drivesplanetary
Differential lockmechanical front
Steeringpower
Brakeswet disc
CabTwo-post folding ROPS. Optional four-post ROPS canopy.
Photos
No photos of the John Deere 1600 Turbo Series III are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Front PTOindependent
Dimensions & Tires
Wheelbase61 inches
154 cm
Weight4173 lbs
1892 kg
Front tire26x12-12
Rear tire18x9.50-8
Full dimensions and tires ...
John Deere 1600 Turbo Series III attachments
62" front-mount mower deck
42" side-mount mower deck
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps75
Battery volts12
References

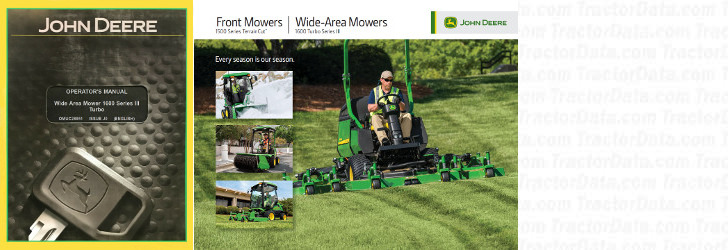

1600 Turbo Series III reference literature
Operator's Manual Wide Area Mower 1600 Series III Turbo (OMUC28951) published in 2020, by John Deere
Front Mowers / Wide-Area Mowers published in 2018, by John Deere
