Bolens 2136

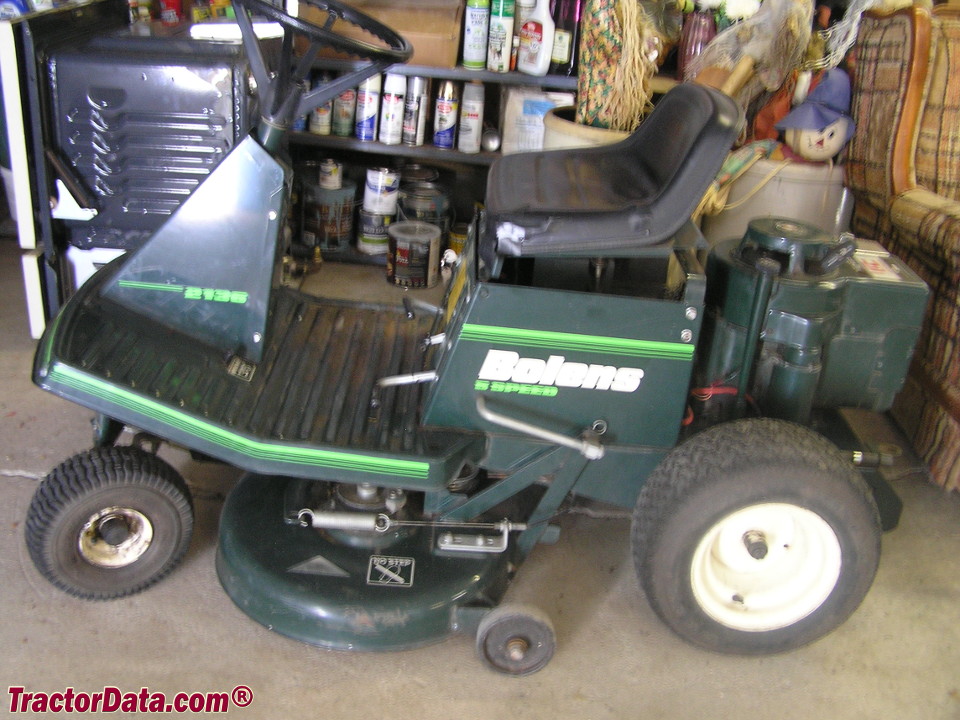

Bolens 2136 lawn tractor photo
1987 - 1992
Riding lawn mower
Production
ManufacturerBolens
TypeRiding lawn mower
Bolens 2136 Engine
12HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank1 gal
3.8 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
Brakesdisc
CabOpen operator station.
Photos
No photos of the Bolens 2136 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual idler pulley
Dimensions & Tires
Weight390 lbs
176 kg
Front tire4.00/3.50x4
Rear tire16x6.50-8
Full dimensions and tires ...
Electrical
Groundnegative
Charging amps3
Battery CCA160
Battery volts12
References
2136 reference literature
Lawn & Garden published in 1988, by Bolens
