Sears 830

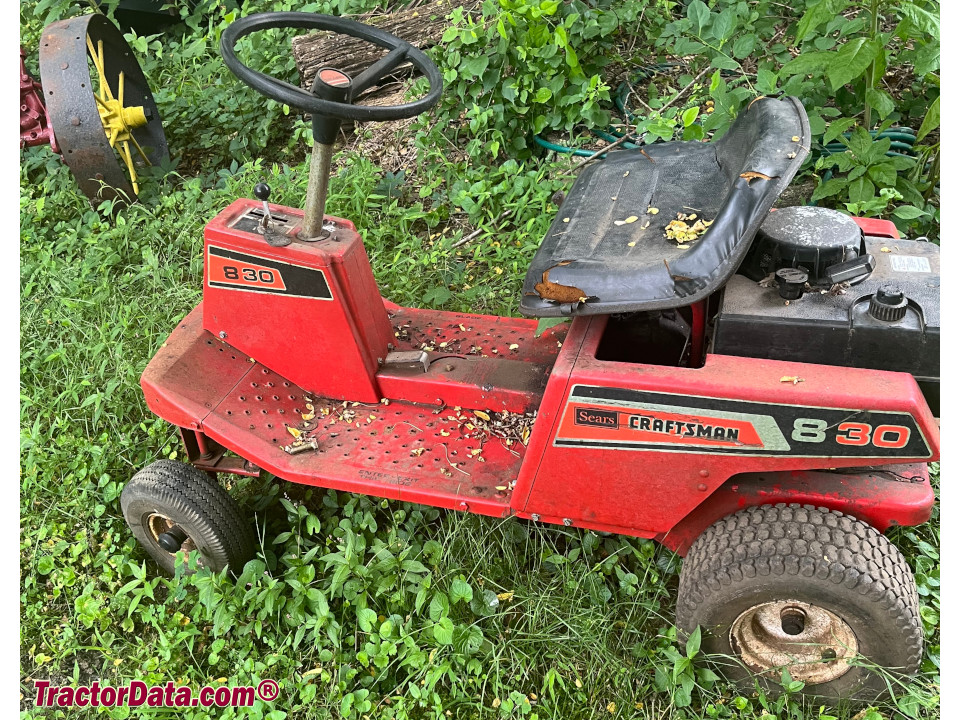

Sears 830 lawn tractor photo
1979 - 1982
Riding lawn mower
Murray built
Series:7258301030
Production
DistributorSears
ManufacturerMurray
TypeRiding lawn mower
Original price$739 (1979 recoil )
Original price$839 (1979 electric )
Original price$900 (1982 electric )
Variants
502.25611recoil start
502.25612electric start
Sears 830 Engine
8HP 1-cyl gasoline
Fuel tank0.75 gal
2.8 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Photos
No photos of the Sears 830 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Weight299 lbs
135 kg
Front tire10.0x4.0
Rear tire15.0x6.0
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemtrickle charger
Charging amps1
Battery volts12
Battery AH14
References
830 reference literature
Riding Mowers, Lawn Tractors, Garden Tractors and Attachments published in 1979, by Sears
