Craftsman 917.25849

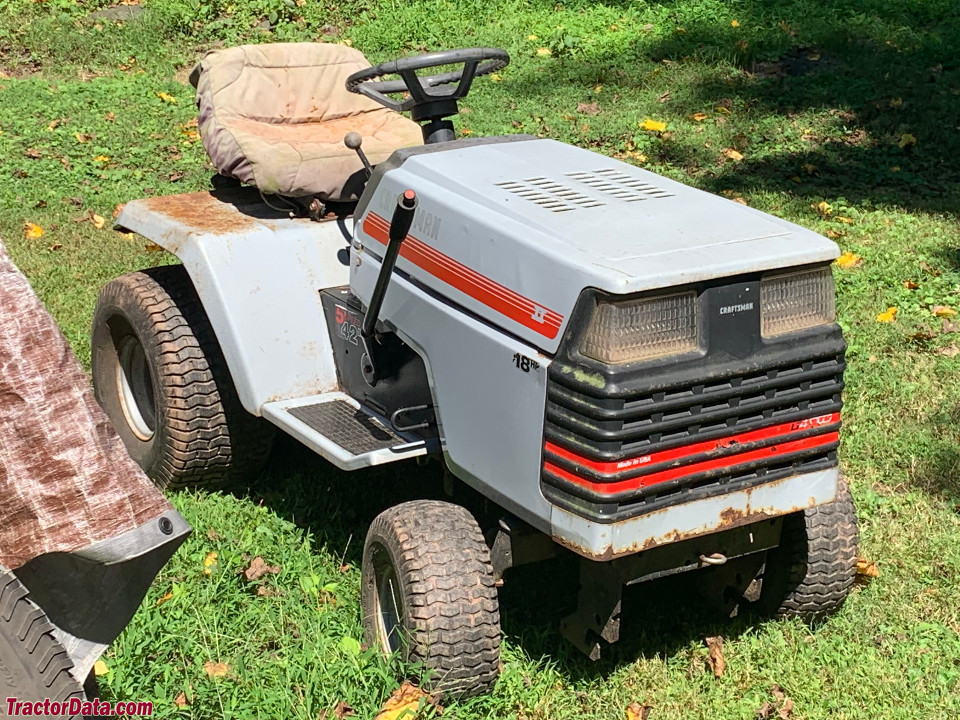

Craftsman 917.25849 lawn tractor photo
1992
Lawn tractor
AYP built
Production
DistributorCraftsman (a part of Sears)
ManufacturerAYP
TypeLawn tractor
Original price$1,700 (1992 )
Craftsman 917.25849 Engine
18HP Briggs & Stratton 693cc 2-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Photos
No photos of the Craftsman 917.25849 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual idler pulley
Dimensions & Tires
Front tire15x6.00-6
Rear tire20x10-8
Full dimensions and tires ...
917.25849 Serial Numbers
Location:Serial number decal under the tractor's seat.
Electrical
Groundnegative
Charging amps3 (headlights)
 5 (battery)
Battery volts12
