Craftsman 917.27219

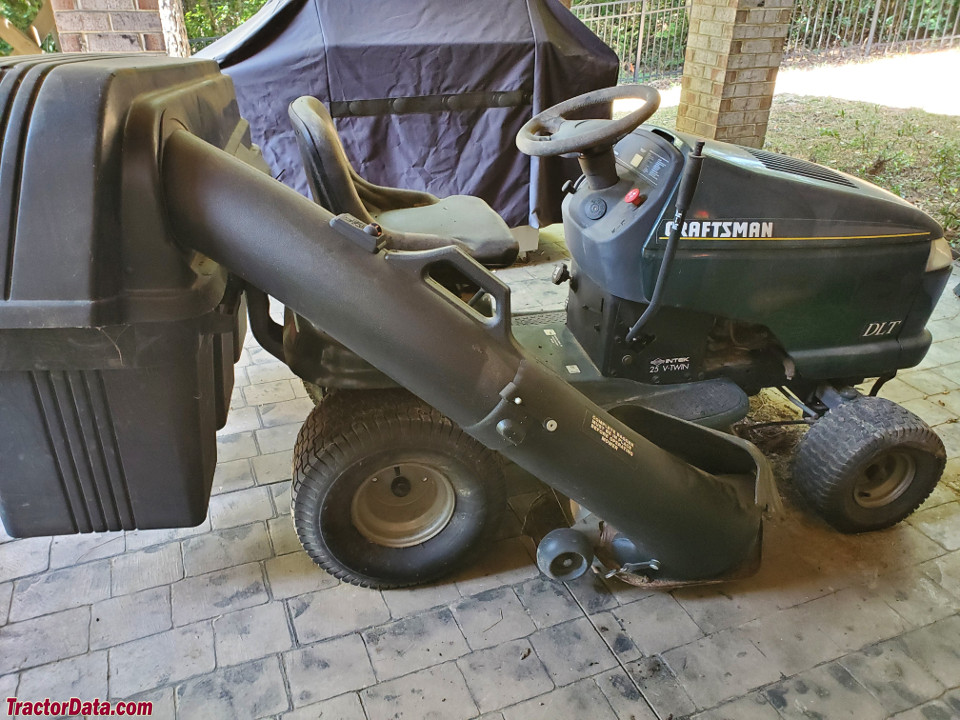

Craftsman 917.27219 lawn tractor photo
2000
DLT Series
Lawn tractor
AYP built
Production
DistributorCraftsman (a part of Sears)
ManufacturerAYP
TypeLawn tractor
Original price$2,300 (2000 )
Variants
27219gear
27220hydrostatic
Craftsman 917.27219 Engine
25HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Front tire15x6.00-6
Rear tire20x10.00-8
Full dimensions and tires ...
Electrical
Groundnegative
Charging amps16
Battery CCA240
Battery volts12
Battery AH30
Battery GroupU1R
