Craftsman 502.60730

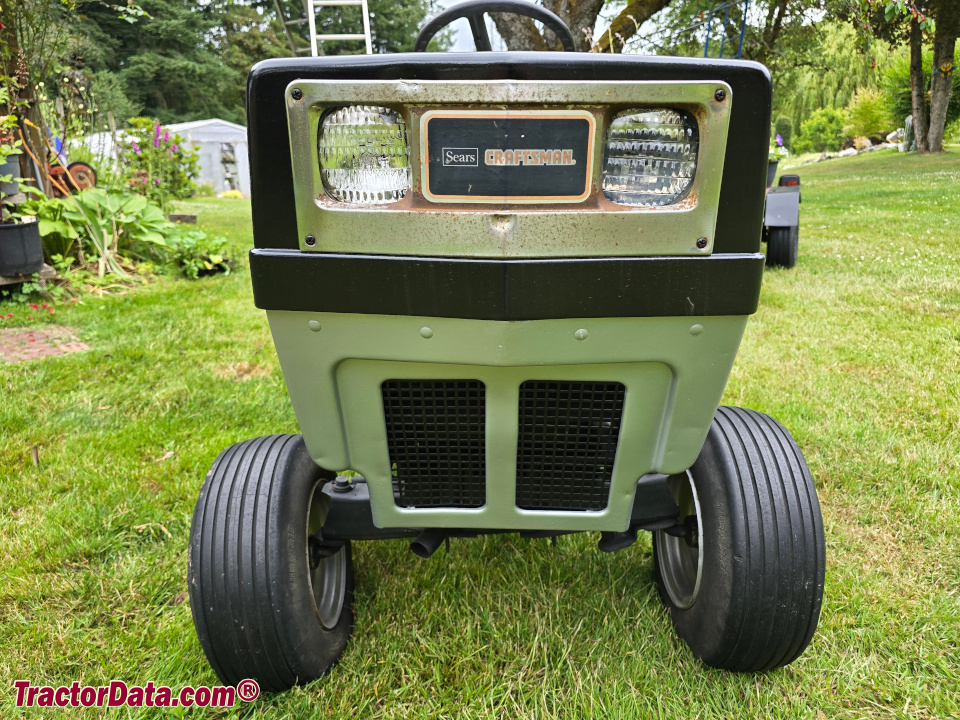

Craftsman 502.60730 lawn tractor photo
1981
Garden tractor
Murray built
Production
DistributorCraftsman (a part of Sears)
ManufacturerMurray
TypeGarden tractor
Original priceCAD3000 (1981 )
Craftsman 502.60730 Engine
18HP Briggs & Stratton 694cc 2-cyl gasoline
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Photos
No photos of the Craftsman 502.60730 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Weight658 lbs
298 kg
Rear tire23x8.50-12
Full dimensions and tires ...
502.60730 Serial Numbers
Location:Serial number plate below the front edge of the tractor's seat, above the gear shift.
Electrical
Groundnegative
Battery volts12
