Craftsman 917.25657 Engine


No photo available
1996
Lawn tractor
AYP built
Engine Detail
Briggs & Stratton 42A707
gasoline
2-cylinder
air-cooled vertical-shaft opposed twin
Displacement:693 cc
42.33 ci
Bore/Stroke:3.4375x2.281 inches
87 x 58 mm
Power:19 hp
14.2 kW
Starter:electric
Starter volts:12
Sparkplug:Champion RJ19LM
Sparkplug gap:0.030 inches
0.762 mm
Engine Oil

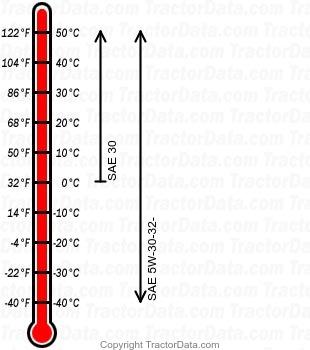

917.25657 gasoline engine oil chart
Oil capacity:0.75 qts
0.7 L
Oil change:25 h
