Yard-Man 3390
|
|
| Production | |
| Manufacturer | Yard-Man |
| Lawn tractor | |
| Built in Jackson, Michigan, USA | |
| Yard-Man 3390 Engine | |
| 7HP Briggs & Stratton 275cc 1-cyl gasoline | |
 Engine details ... |
| Yard-Man 3390 Transmission | |
| 3-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
| No photos of the Yard-Man 3390 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Dimensions & Tires | |
| Front tire | 11x4.00-5 |
| Rear tire | 14x5.50-6 |
 Full dimensions and tires ... | |
| Yard-Man 3390 attachments | |
| 32" mid-mount mower deck | |
 Attachment details ... |
| 3390 Serial Numbers |
| 3390 Serial Location | |
 | |

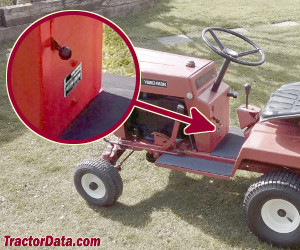

| Serial number decal below the throttle lever on the 3380. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Operating Manual Models 3380-1 and 3390-1 (0611-645) published in 1969 |
