Ventrac 2320

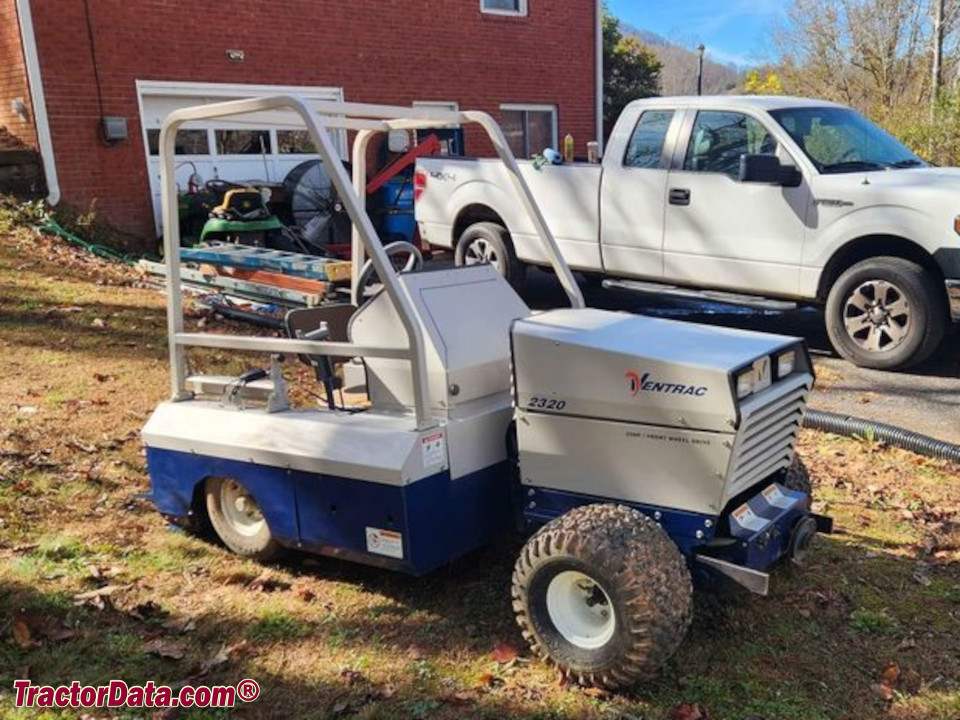

Ventrac 2320 lawn tractor photo
1997 - 2001
Front-mount mower
Production
ManufacturerVentrac
TypeFront-mount mower
FactoryOrrville, Ohio, USA
Total built16
The Ventrac 2320 tractor is designed for a operator in a wheelchair. A powered ramp provided access to the operation platform in which all controls can be operated by hand. Attachments can be mounted without leaving the operator station.
Ventrac 2320 Engine
20HP Kohler 640cc 2-cyl gasoline
Fuel tank5 gal
18.9 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringpower
CabOpen operator station with ramp and wheelchair lock.
Photos
No photos of the Ventrac 2320 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Weight1200 lbs
544 kg
Front tire22x12-8
Rear tire5.70-8
Full dimensions and tires ...
Ventrac 2320 attachments
60" front-mount mower deck
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
