Allis Chalmers 405

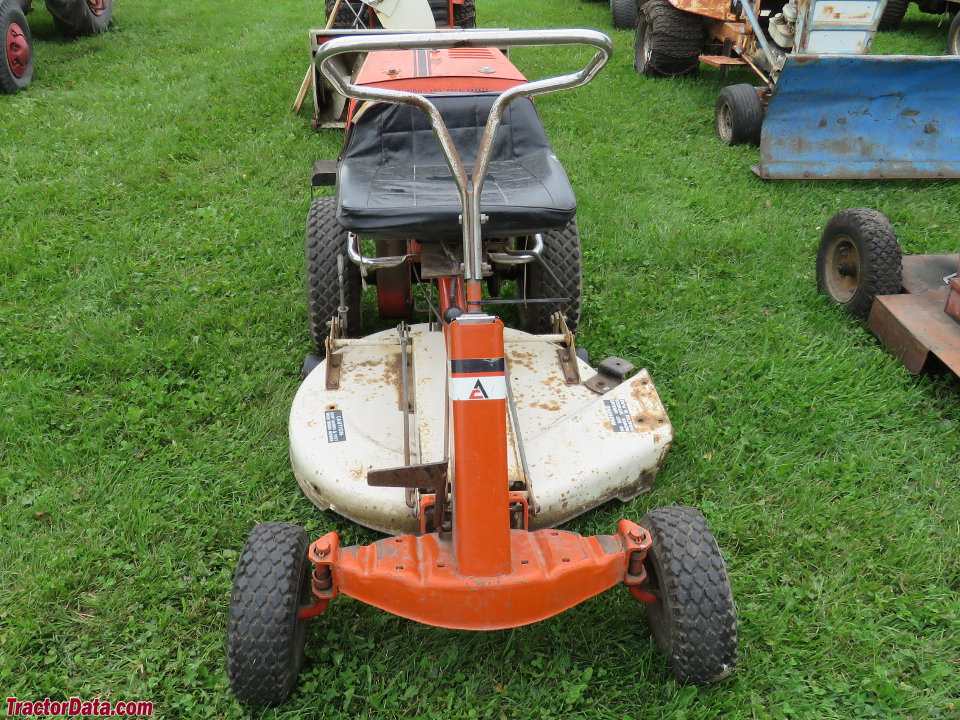

Allis Chalmers 405 lawn tractor photo
1975 - 1979
Riding lawn mower
Series map:
405
5.0hp
Production
ManufacturerAllis Chalmers
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price was $681 in 1979
Variants
3005 Wonder Boysimilar Simplicity model
Allis Chalmers 405 Engine
5HP Briggs & Stratton 204cc 1-cyl gasoline
Fuel tank0.75 gal
2.8 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Wheelbase41.5 inches
105 cm
Weight268 lbs
121 kg
Front tire4.10/3.50x4
Rear tire16.00/6.50x8
Full dimensions and tires ...
405 Serial Numbers
405 Serial Location

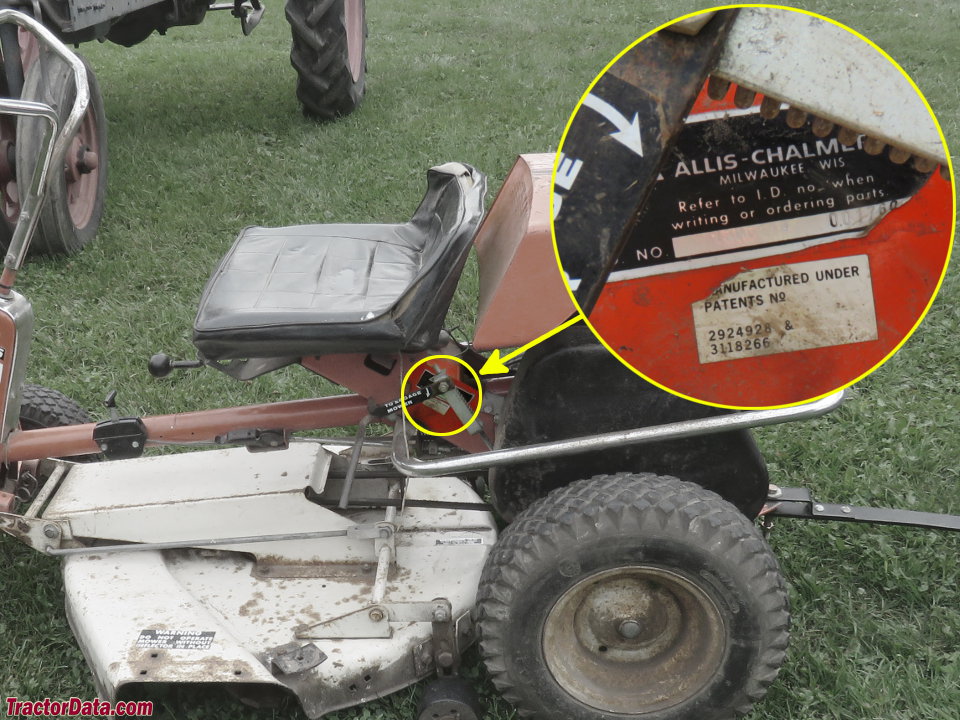

Allis Chalmers 405 serial number location
Serial number decal on the left side of the Allis Chalmers 405 frame, under the seat.
References
405 references literature
1974 Buyer's Guide published by Allis-Chalmers
Allis-Chalmers Lawn and Garden Equipment published in 1975
The Beautiful difference in Lawn and Garden Tractors published in 1976, by Allis-Chalmers
Lawn and Garden Tractors published in 1979, by Allis-Chalmers
