Lawn Tractors > Bolens > 233 Ride-A-Matic

Bolens 233 Ride-A-Matic

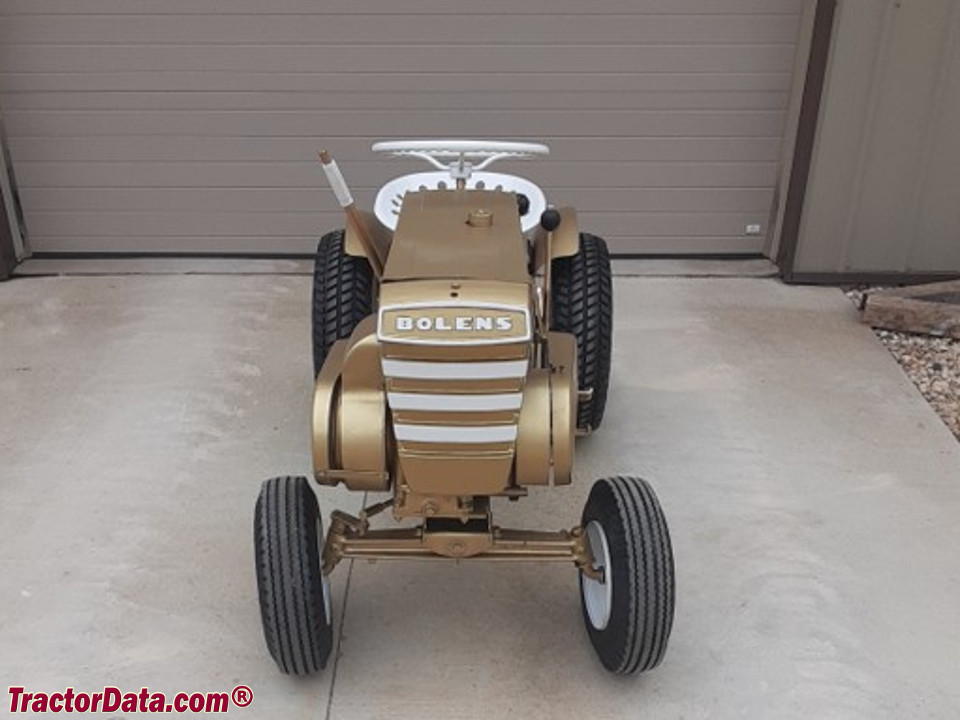

Bolens 233 Ride-A-Matic lawn tractor photo
1961 - 1961   Ride-A-Matic Series
Garden tractor
Previous model:Bolens 231
Next model:Bolens 235






Production:

Manufacturer:Bolens
Original price (USD)
   $548 (1961 233 )
   $623 (1958 234 )


Variants:

233:recoil start
234:electric start


Bolens 233 Engine:

   7HP Kohler 277cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:1.5 gal [5.7 L]


Dimensions & Tires:

Wheelbase:41.5 inches [105 cm]
Weight:500 lbs [226 kg]
Front tire:4.00x8
Rear tire:6-12
full dimensions and tires ...


Bolens 233 attachments:

 38" mid-mount mower deck
 snowblower
 blade
all 233 attachments ...


233 Serial Numbers:


how to read serial numbers...



Mechanical:

Transmission:12-speed CVT
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12


Page information:
