Bolens 230 Ride-A-Matic
|
|
| Production | |
| Manufacturer | Bolens |
| Garden tractor | |
| Original price was $509 in 1959 | |
| Bolens 230 Engine | |
| 7HP Kohler 277cc 1-cyl gasoline | |
| Fuel tank | 1.5 gal 5.7 L |
 Engine details ... | |
| Bolens 230 Transmission | |
| 6-speed CVT | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |

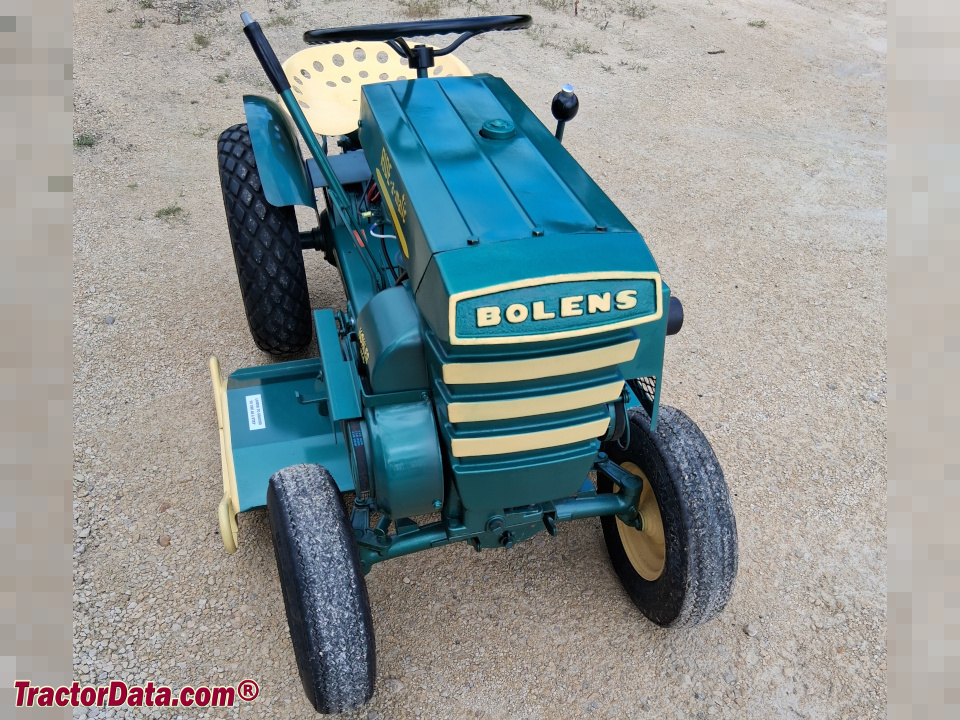

| Photos | |
 | |
 Bolens 230 photos... | |
| Dimensions & Tires | |
| Wheelbase | 41.5 inches 105 cm |
| Weight | 500 lbs 226 kg |
| Front tire | 4.00x8 |
| Rear tire | 6-12 |
 Full dimensions and tires ... | |
| Bolens 230 attachments | |
| 38" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |

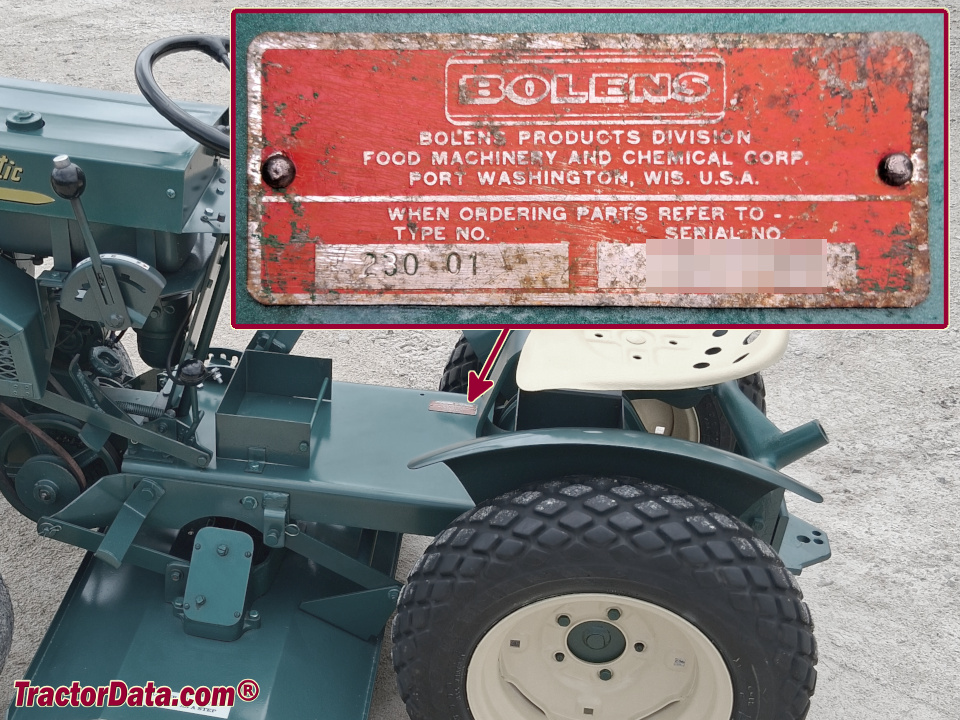

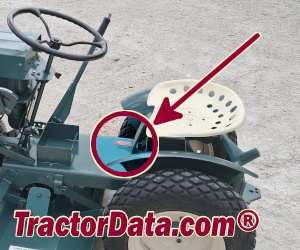

| 230 Serial Number Location | |
 | |
| Serial number plate on the right side, near the rear tire. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Utility Tractors published in 1959, by Bolens |
